Magnetic Switch

Push in plunger and release it. The plunger should return quickly to its original position. Replace if necessary.

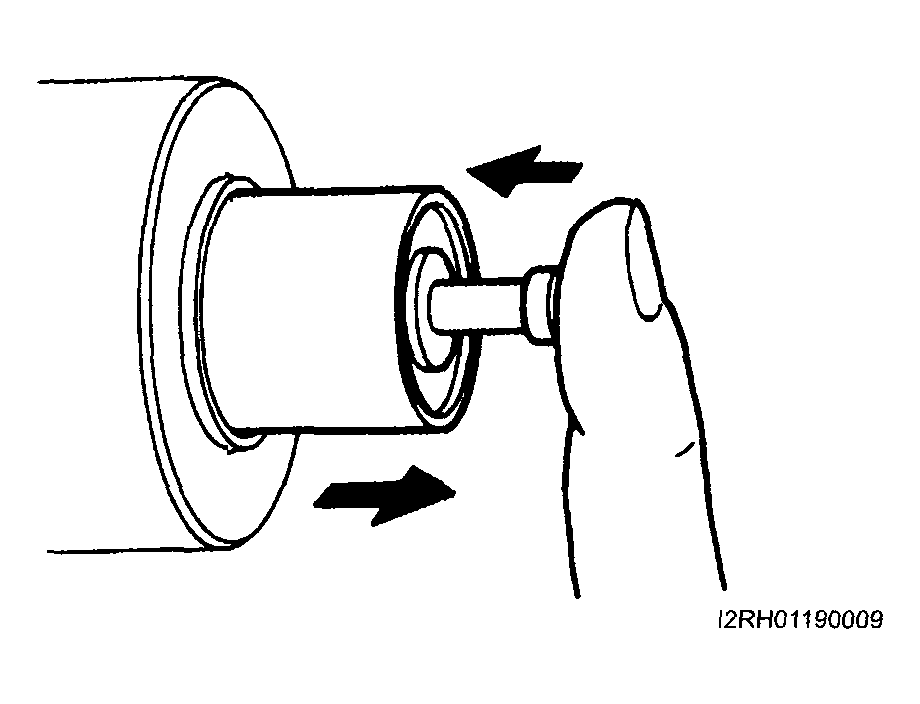

Fig 1: Pushing In Plunger And Releasing It
G04014303Courtesy of SUZUKI OF AMERICA CORP.
