Underdrive Brake Components
Underdrive Brake Components

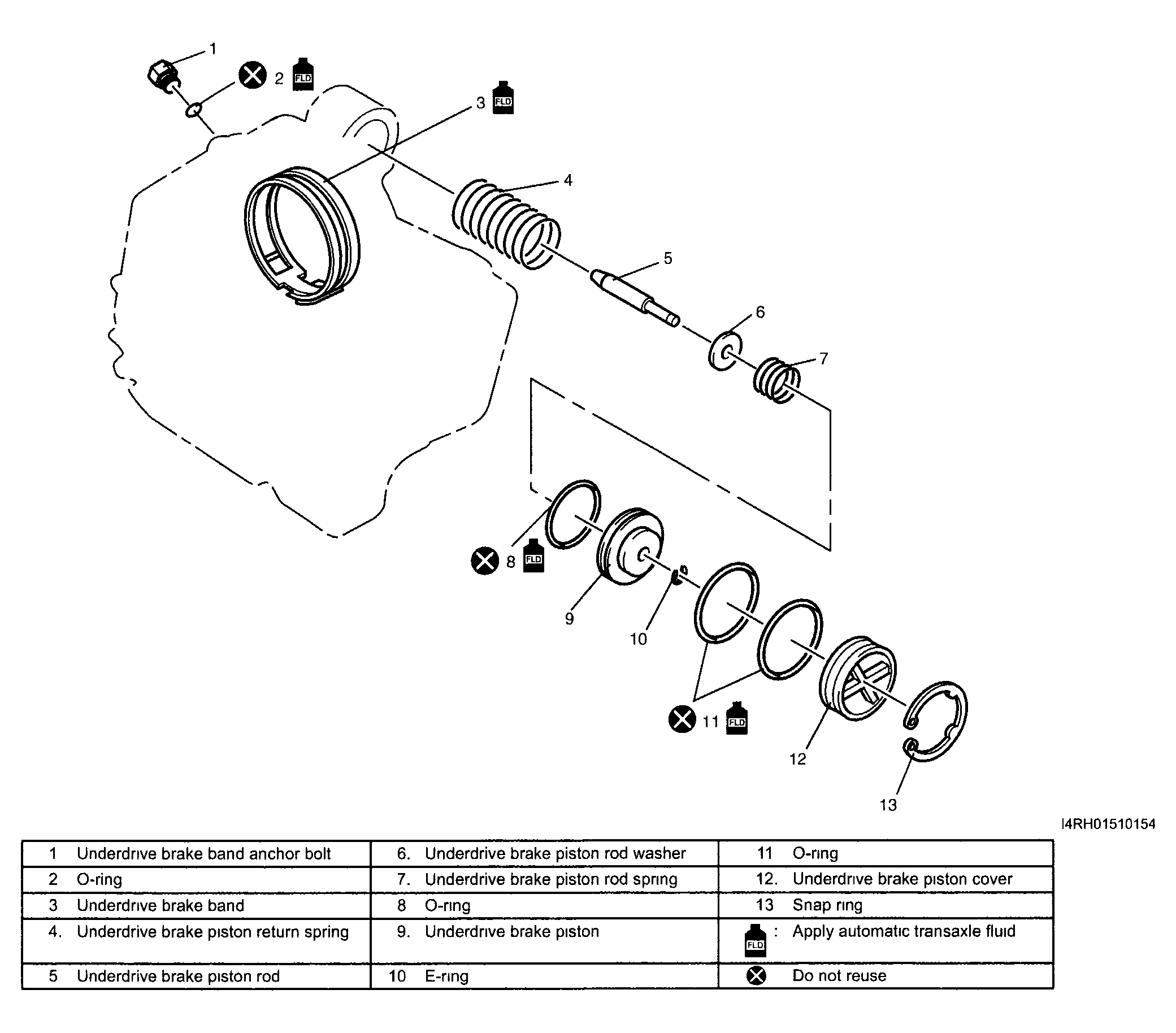

Fig 1: Exploded View Of Underdrive Brake Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
