Automatic Transmission
>>
Repair Instructions
>>
Transaxle Rear Cover Components
Transaxle Rear Cover Components

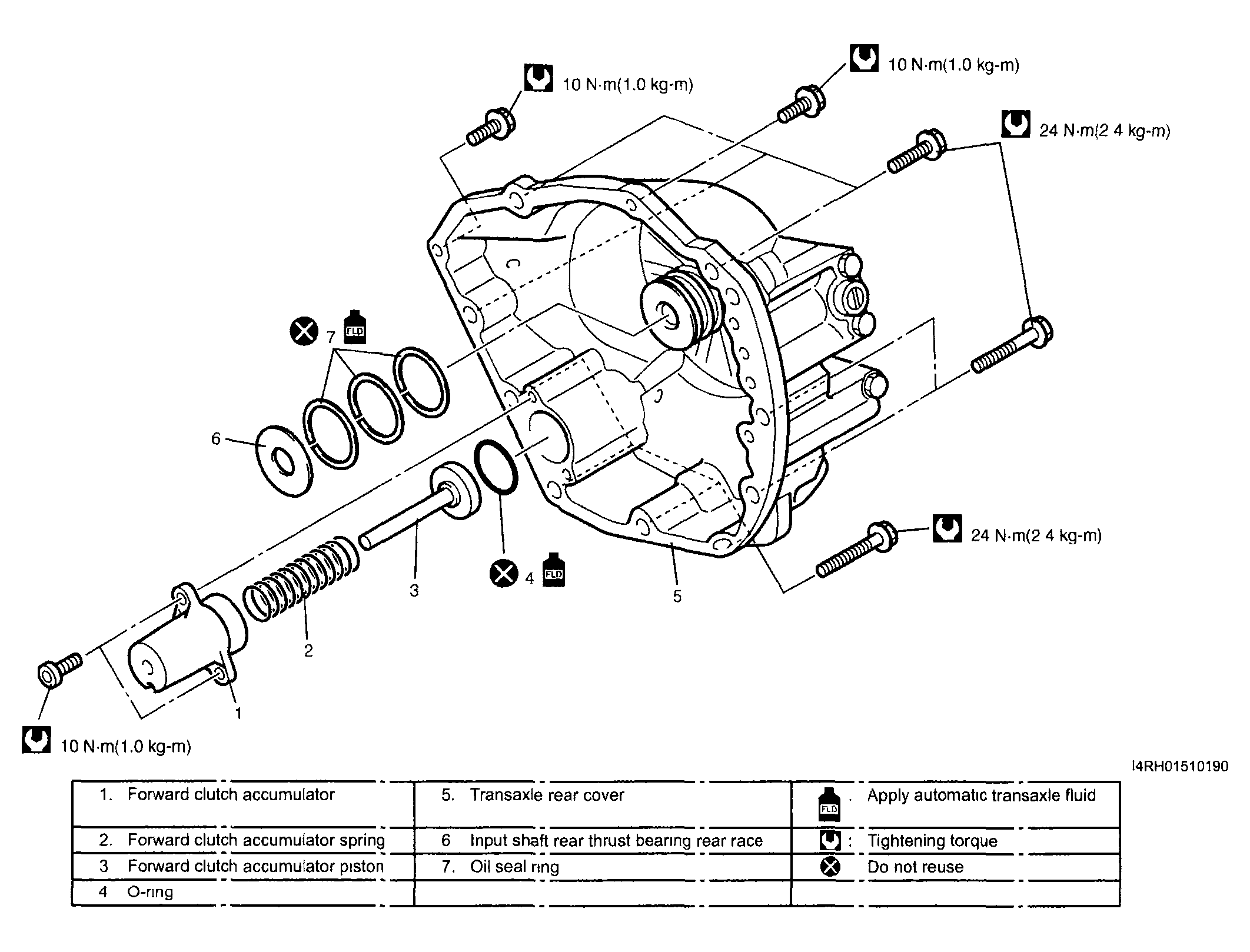

Fig 1: Exploded View Of Transaxle Rear Cover Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
