Automatic Transmission
>>
Repair Instructions
>>
Planetary Gear Components
Planetary Gear Components

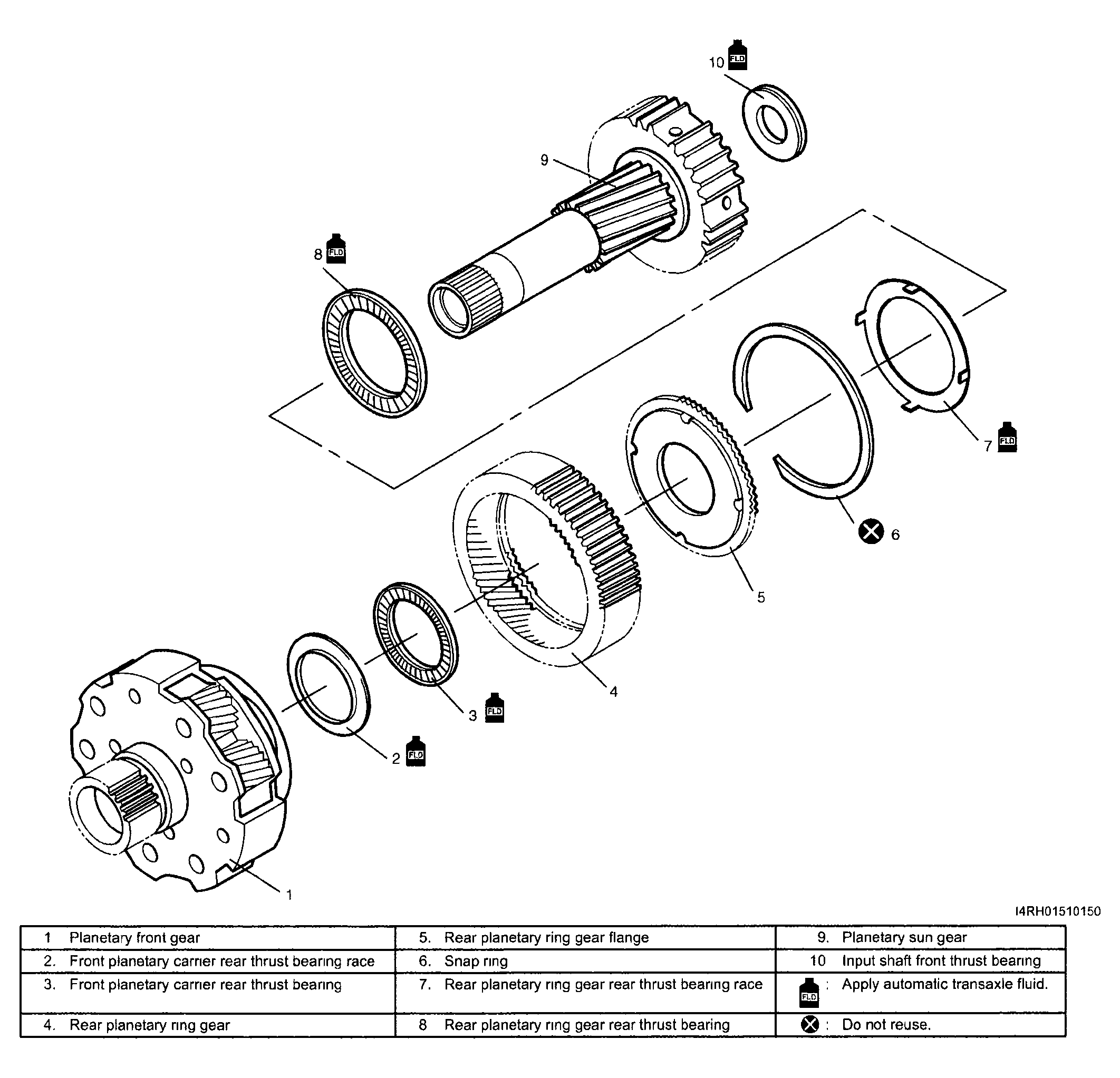

Fig 1: Exploded View Of Planetary Gear Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
