Front Strut Assembly Components

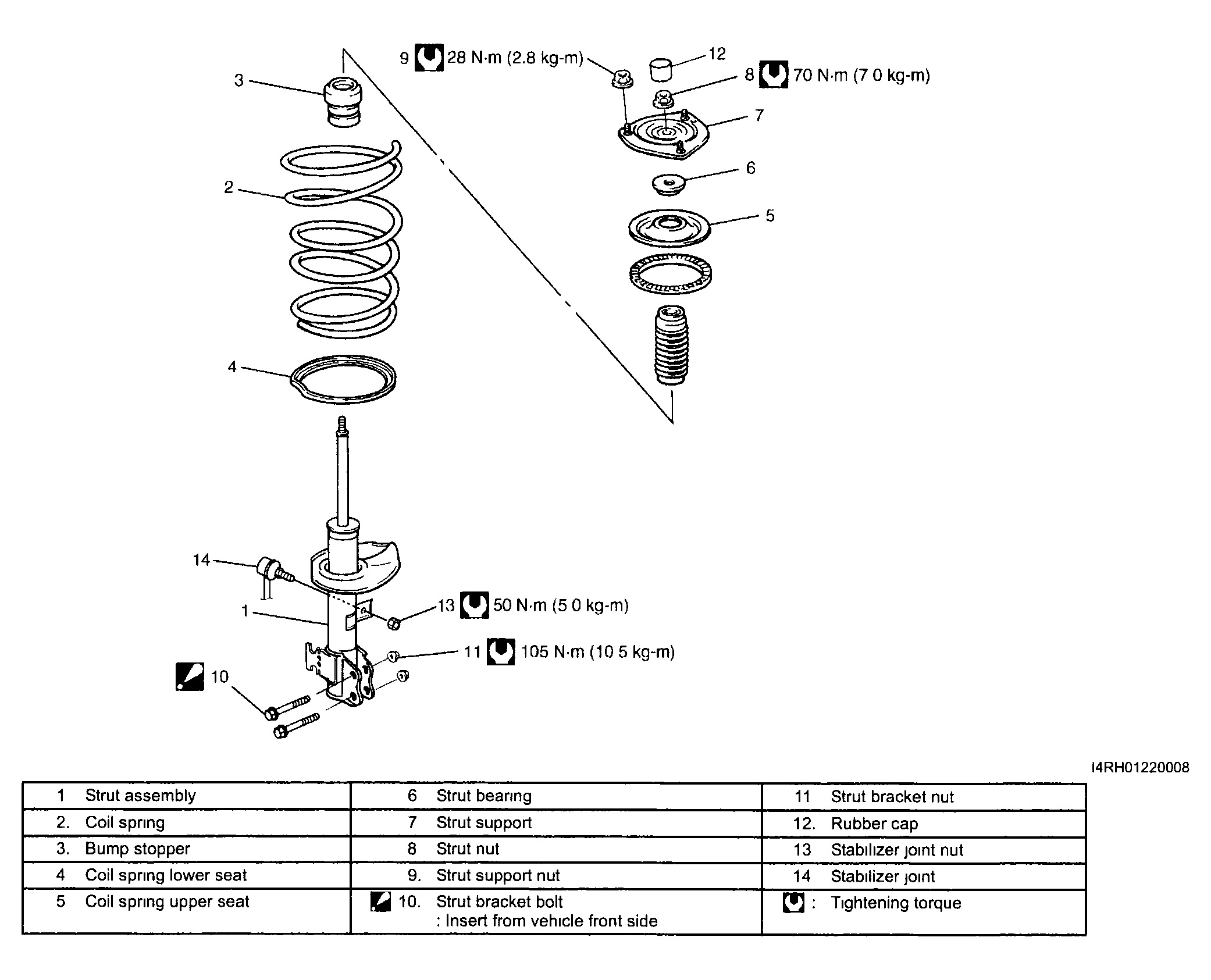

Fig 1: Exploded View Of Front Strut Assembly

G04014367

Courtesy of SUZUKI OF AMERICA CORP.
