DTC P0461: Fuel Level Sensor Circuit Range/Performance Problem: Wiring Diagram

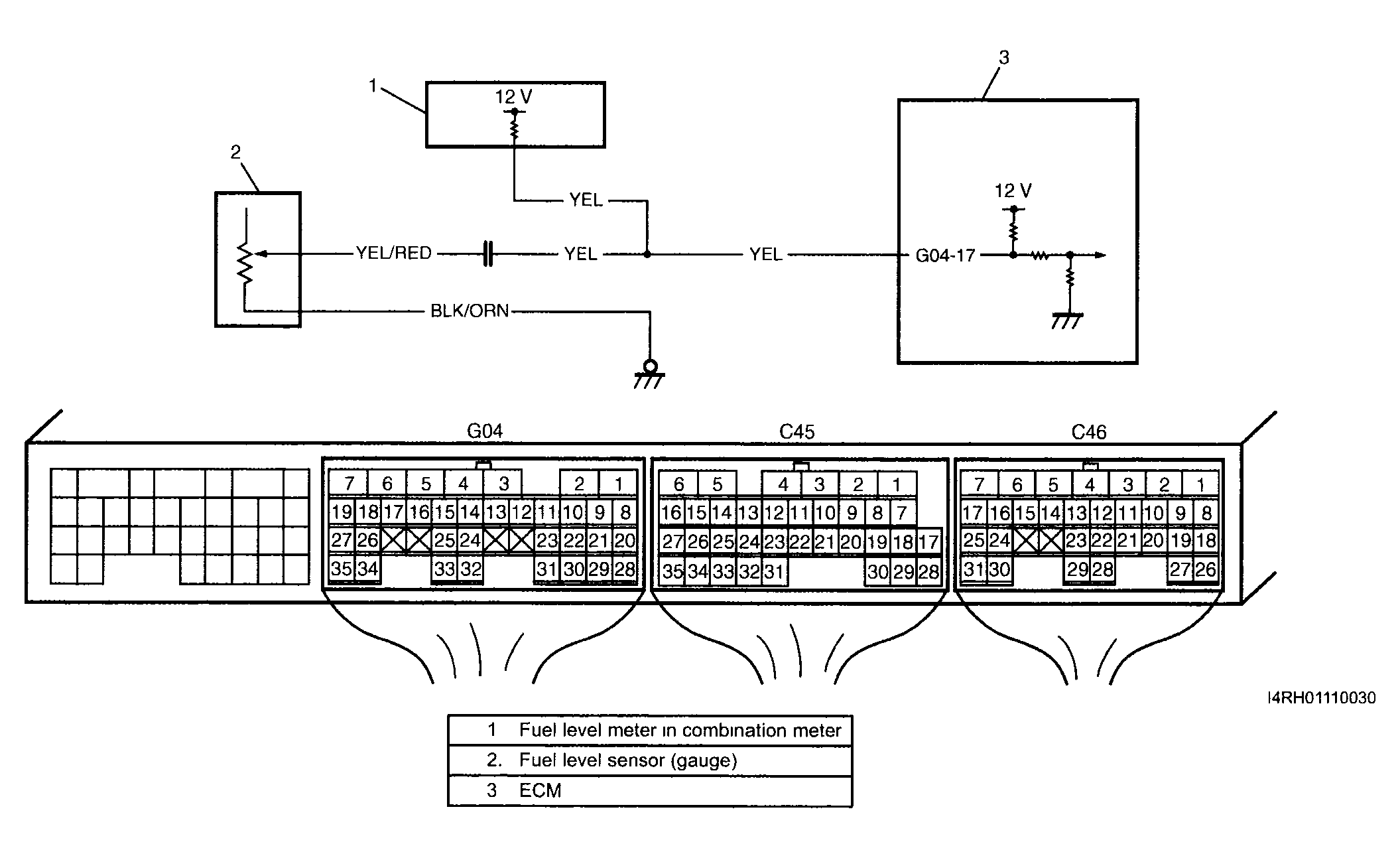

Fig 1: Fuel Level Sensor Circuit - Wiring Diagram (DTC P0461)

G04013739

Courtesy of SUZUKI OF AMERICA CORP.
