A/C Condenser Fan Control System Inspection: Wiring Diagram

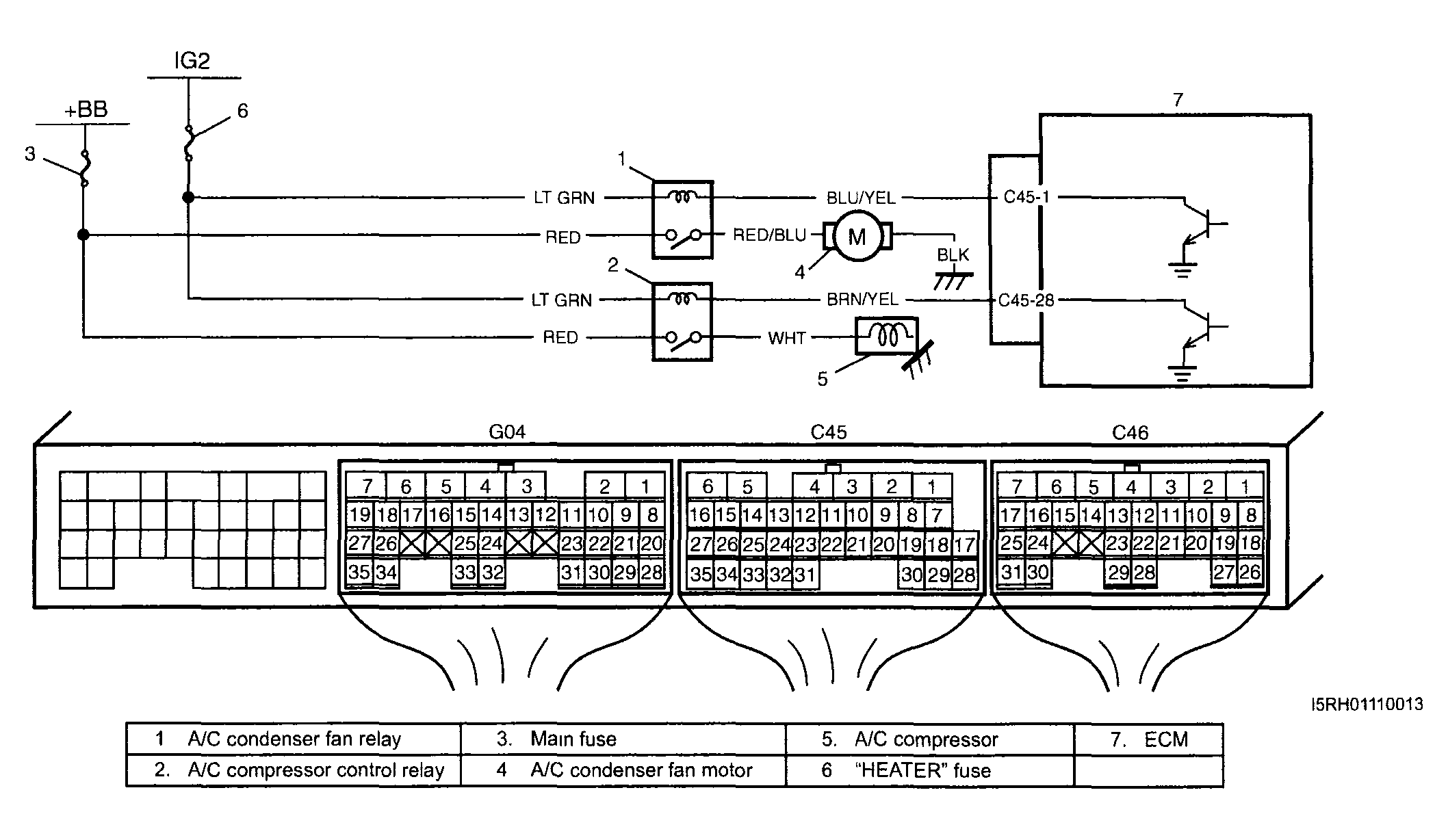

Fig 1: A/C Condenser Fan Control - Wiring Diagram

G04013818

Courtesy of SUZUKI OF AMERICA CORP.
