Transmission Control Module (TCM) Wiring Diagram: Notes

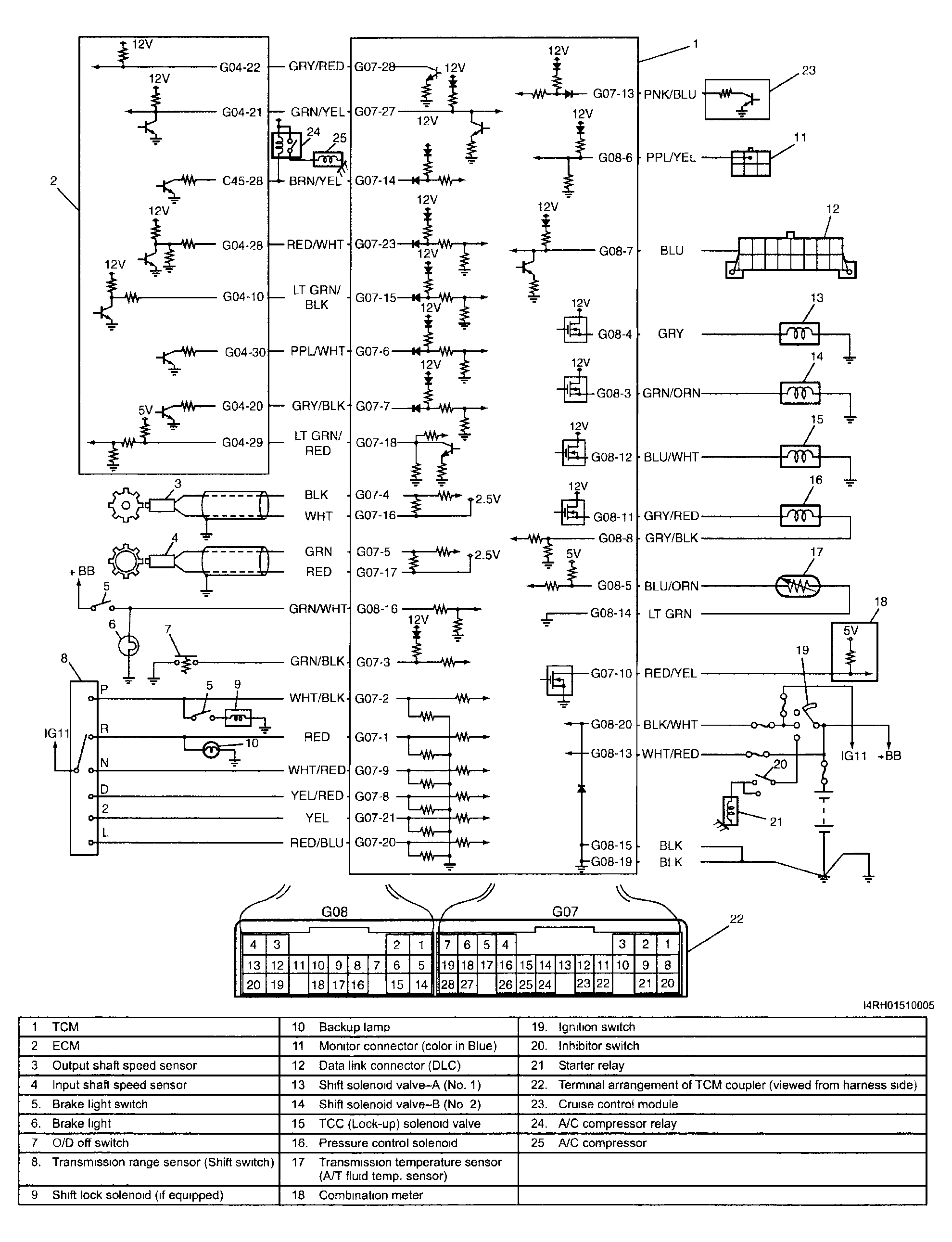

Fig 1: Transmission Control Module (TCM) Wiring Diagram

G04014935

Courtesy of SUZUKI OF AMERICA CORP.
