Ignition System Wiring Circuit Diagram

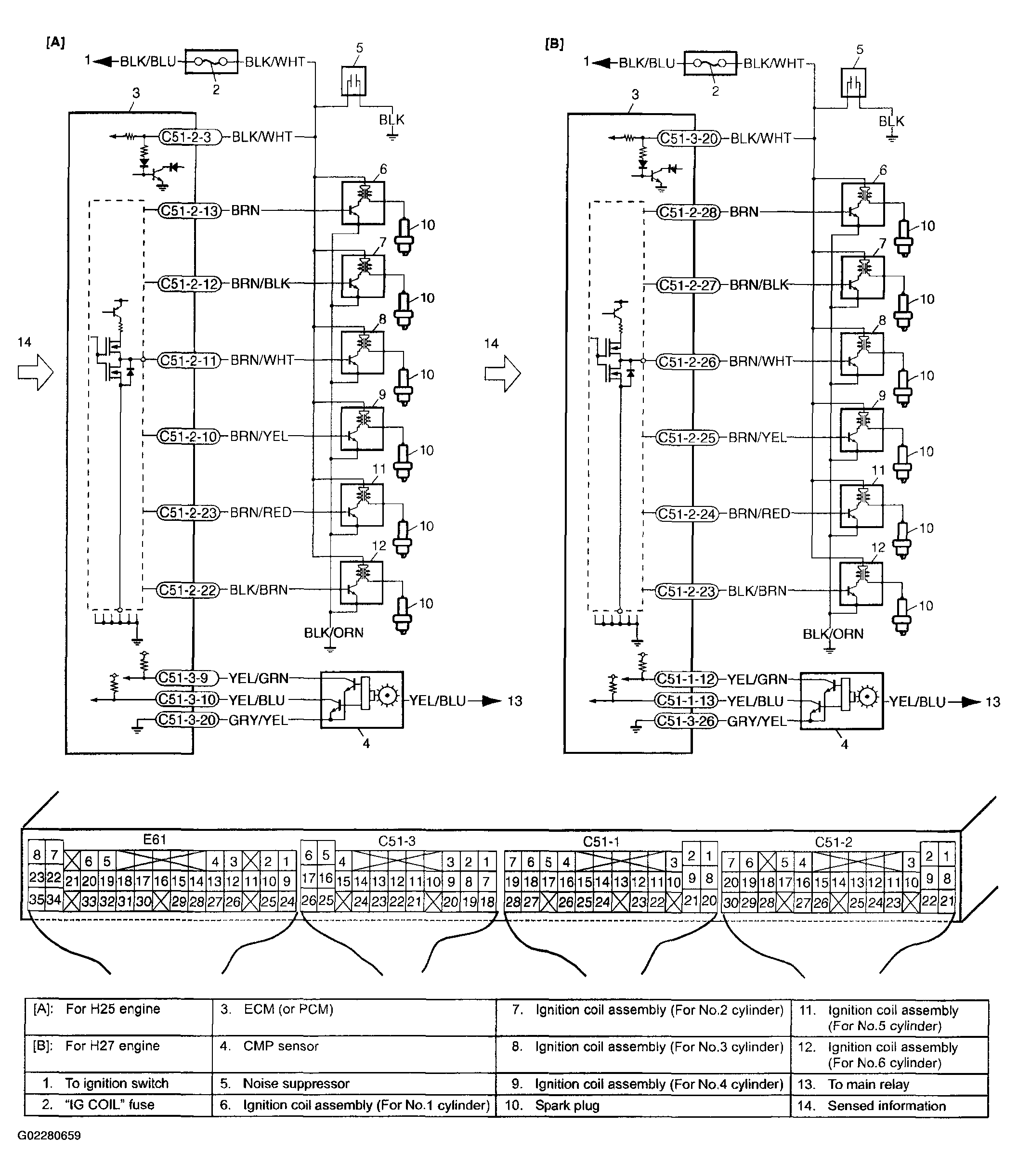

Fig 1: Ignition System Wiring Diagram

G02280659

Courtesy of SUZUKI OF AMERICA CORP.
