Suzuki
>>
2004
>>
XL-7 EX, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Diagnostic Information & Procedures
>>
Ignition System Symptom Diagnosis
Ignition System Symptom Diagnosis

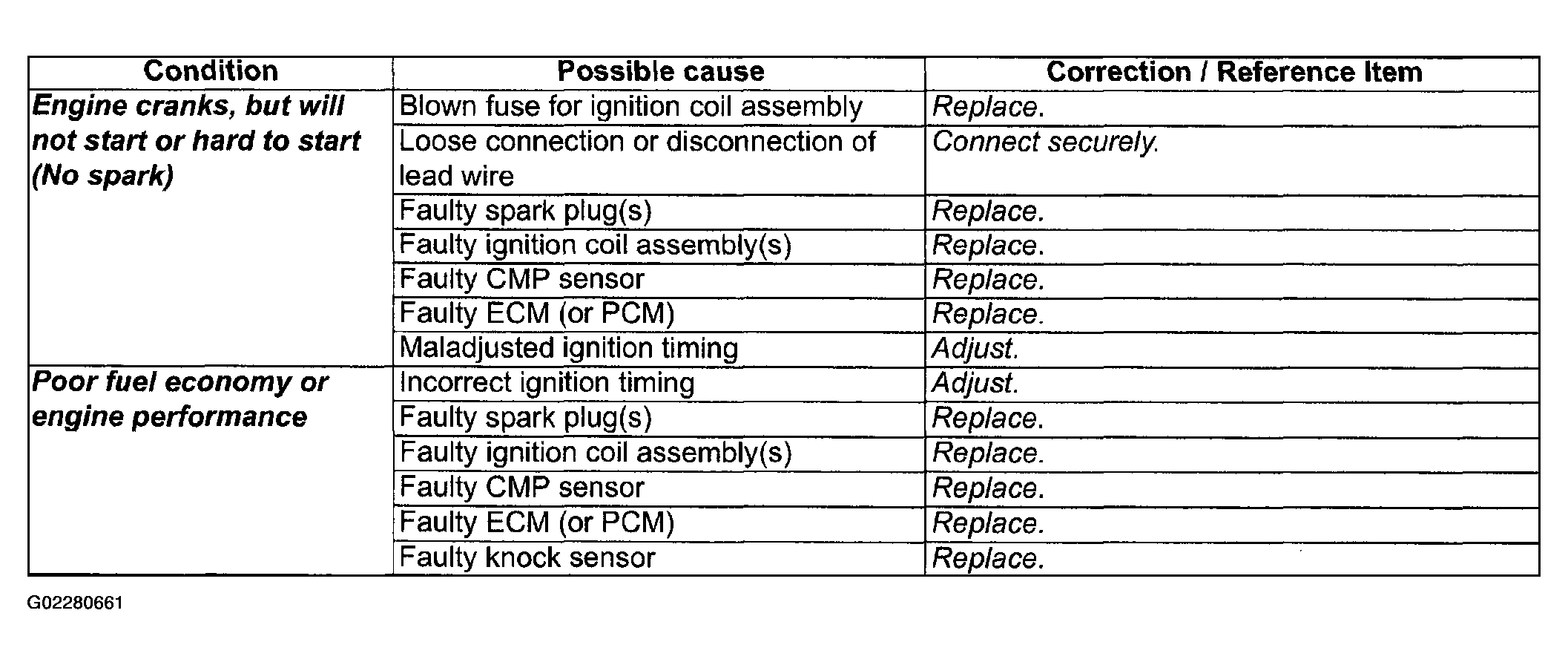

Fig 1: Ignition System Symptom Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
