General Description
>>
Engine & Emission Control Input/Output Table
Engine & Emission Control Input/Output Table

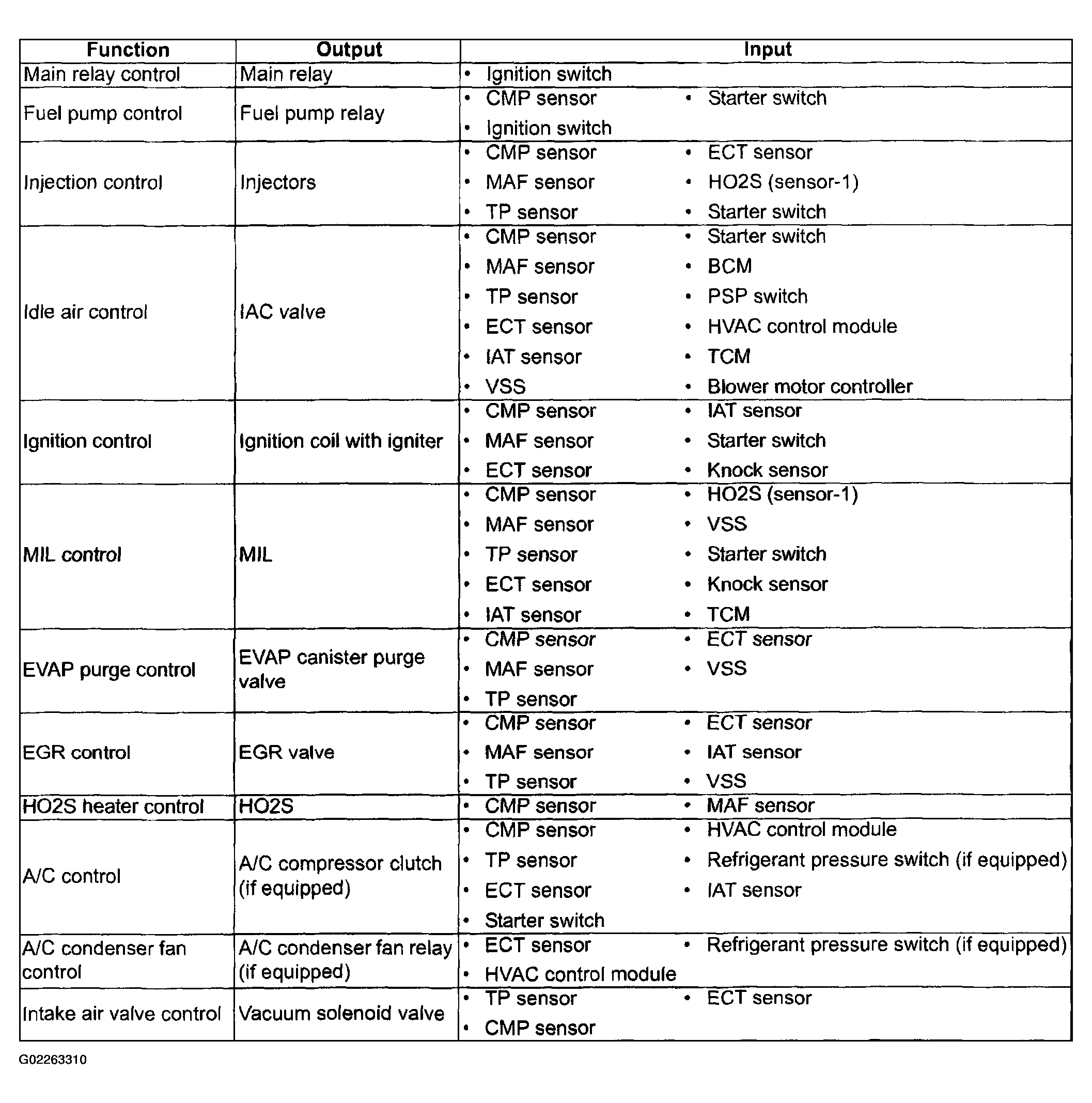

Fig 1: Engine and Emission Control Input/Output Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
