Front Seat Components For H27 Engine Model

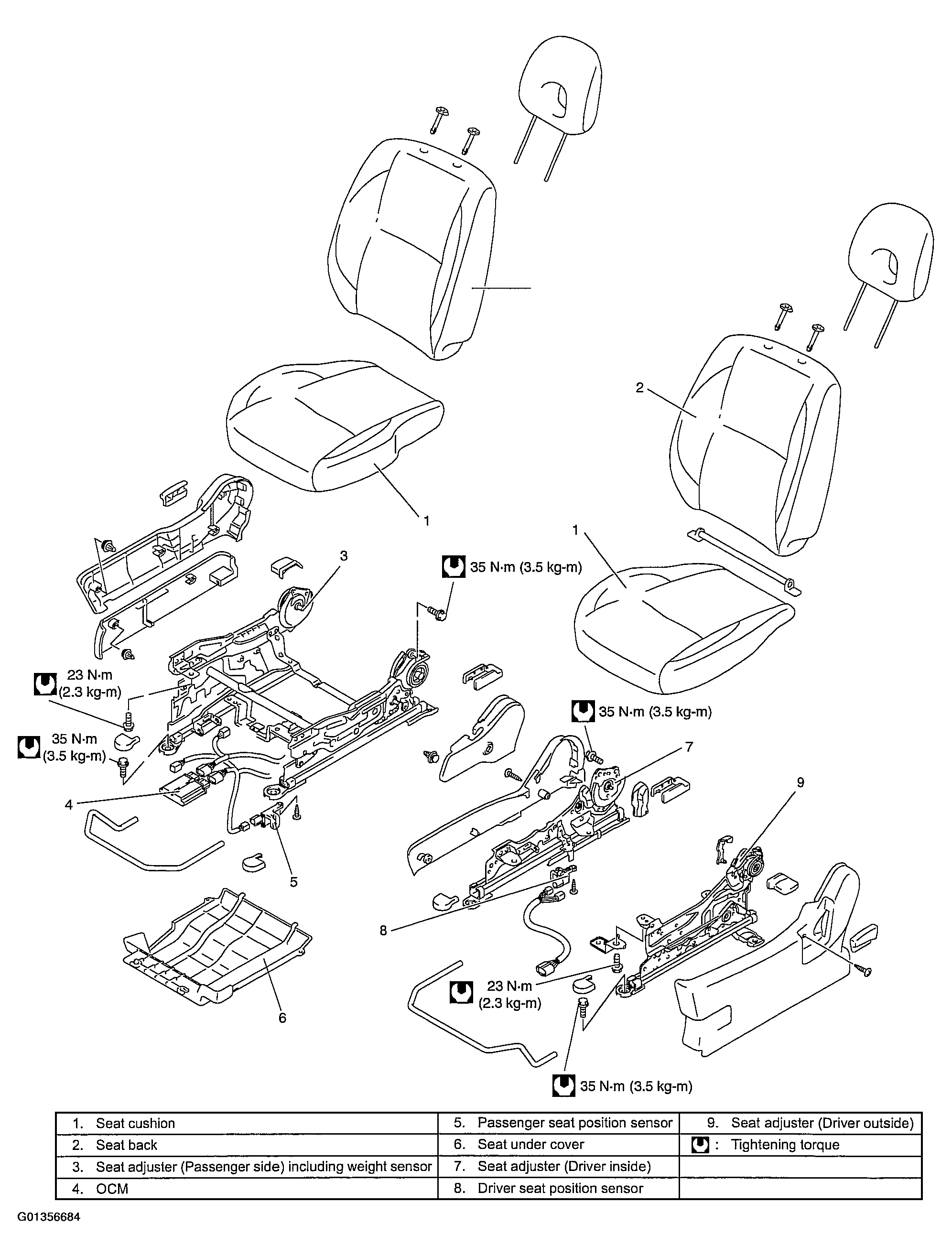

Fig 1: Exploded View Of Front Seat Components (XL-7)

G01356684

Courtesy of SUZUKI OF AMERICA CORP.
