LEMON Manuals
: Even more car manuals for everyone
Home
>>
Suzuki
>>
2004
>>
Vitara RWD, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power Assisted Steering System
>>
Repair Instructions
>>
Power Steering Pump Components
Power Steering Pump Components

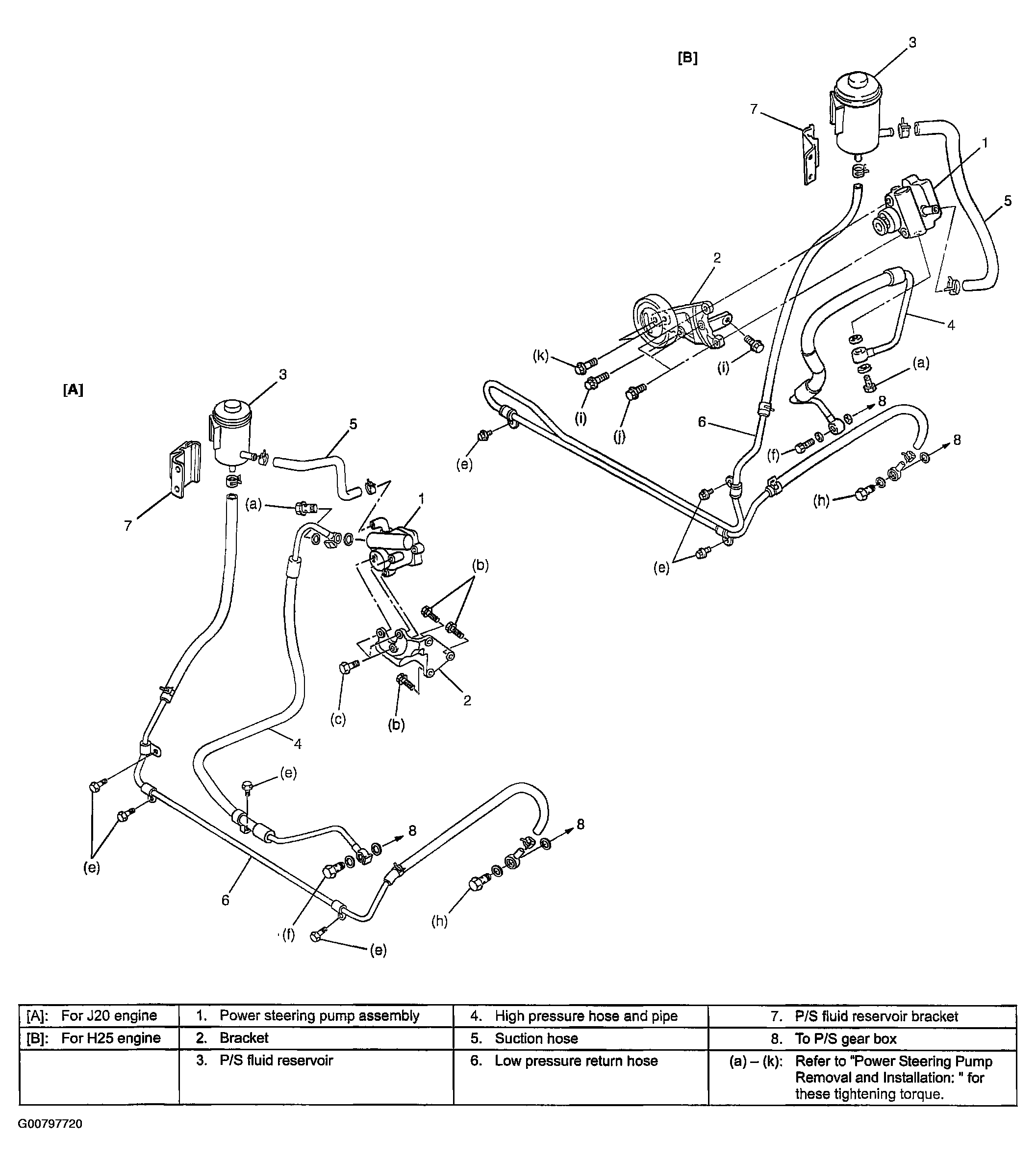

Fig 1: Identifying Power Steering Pump Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
