Throttle Position (TP) Sensor Removal and Installation: Installation

  1. To install sensor, place it onto throttle body so that sensor pickup lever (2) can engage with throttle body lever (1). "A" should engage with "B".

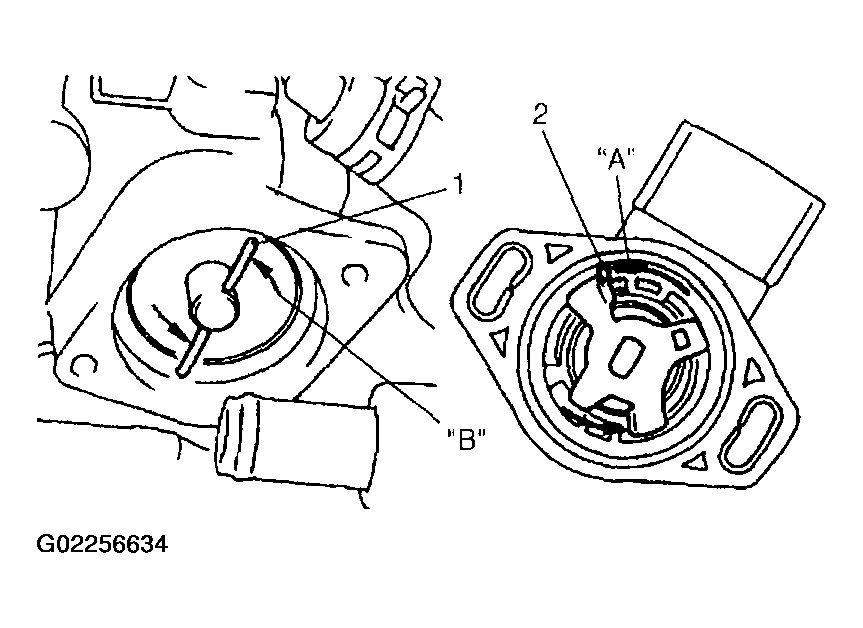

    Fig 1: Engaging Sensor Pickup Lever With Throttle Body Lever
    G02256634Courtesy of SUZUKI OF AMERICA CORP.
  2. Hand-tighten TP sensor screws.
  3. Connect connector to TP sensor securely.
  4. Connect battery negative cable to battery.
  5. Adjust installation angle of TP sensor referring to "THROTTLE POSITION (TP) SENSOR ADJUSTMENT  ".
