EBCM Input / Output Signal Description

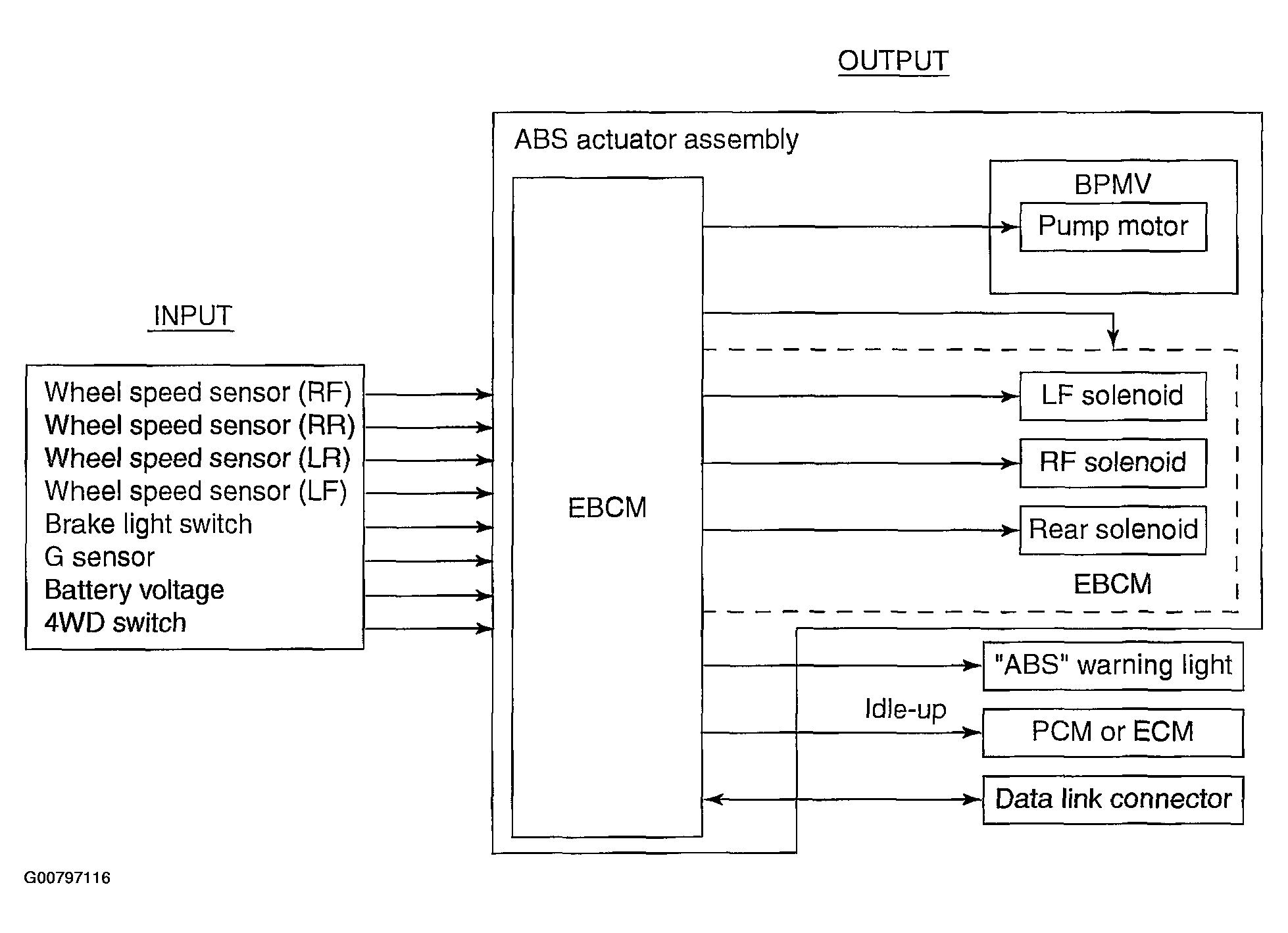

Fig 1: EBCM Input / Output Signal Description Flow Chart

G00797116

Courtesy of SUZUKI OF AMERICA CORP.
