ABS Check: Notes

Refer to the following items for the details of each step.

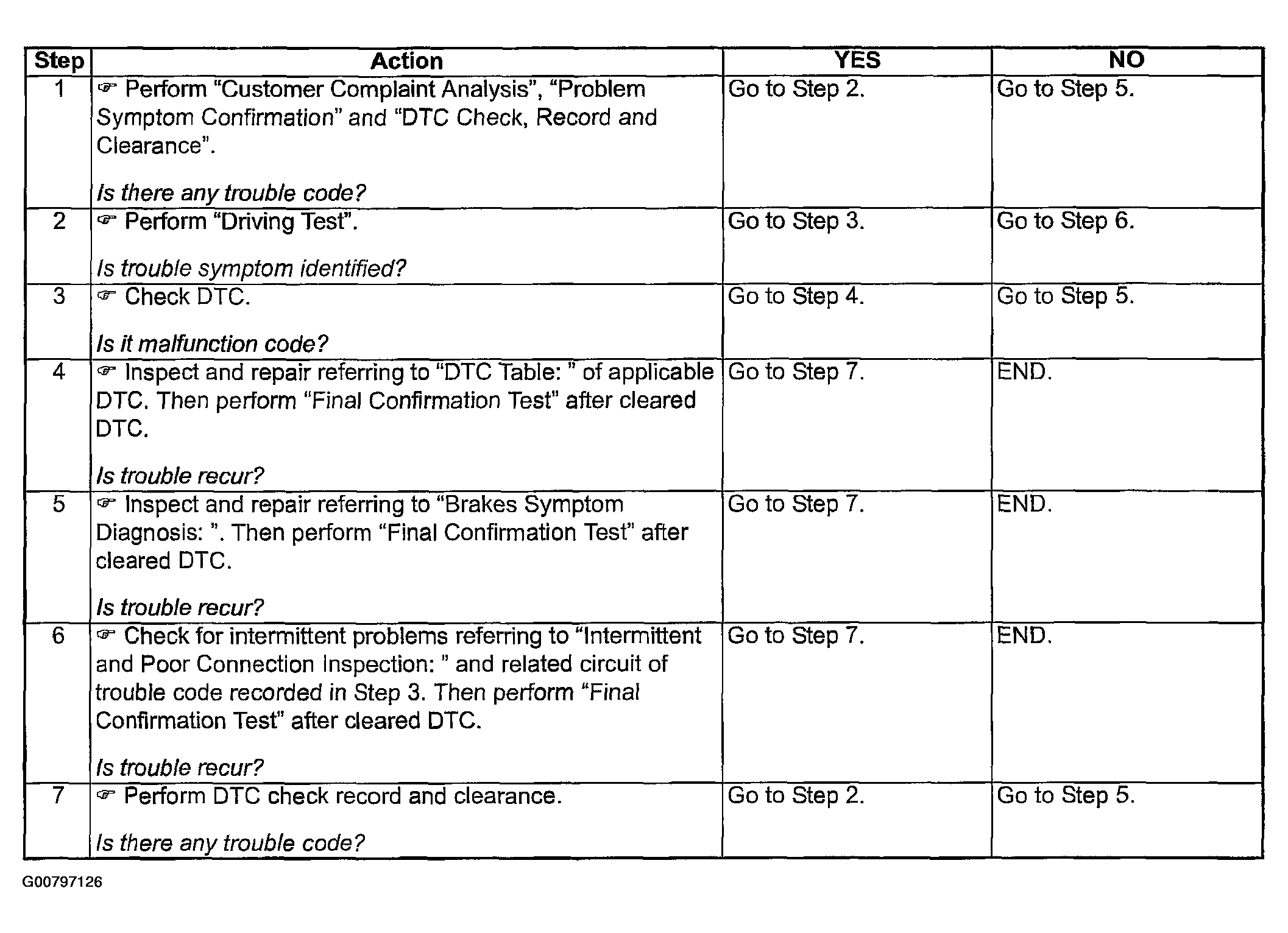

Fig 1: ABS Check Table

G00797126

Courtesy of SUZUKI OF AMERICA CORP.
