Fuel Pump Removal and Installation: Installation

Reverse removal procedure for installation noting the following.

• Use new gasket (2).
• Tighten fuel pump bolts to specified torque.

  Tightening torque

  Fuel pump bolt (a): 5 N.m (0.5 kg-m, 4.0 lb-ft)

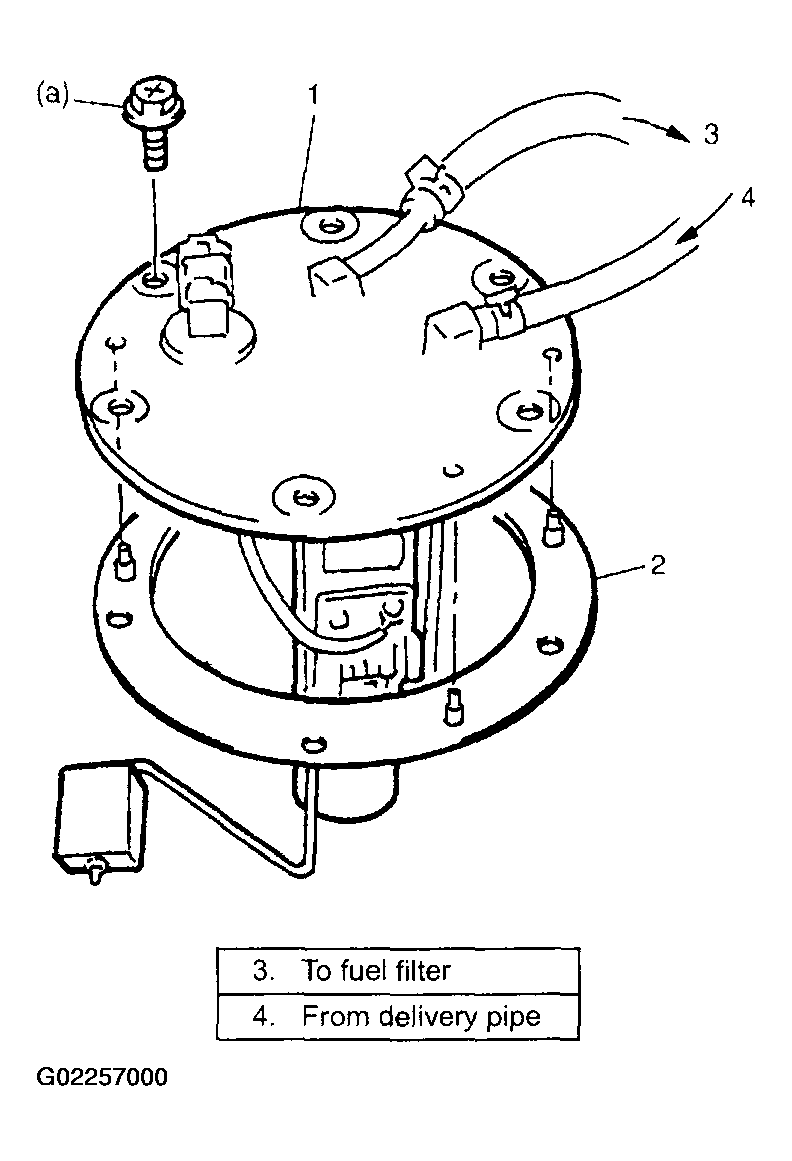

  Fig 1: Tightening Fuel Pump Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
