Fuel Pressure Regulator Removal and Installation: Installation

For installation, reverse removal procedure and note the followings.

• Use new O-ring.
• Apply thin coat of gasoline to O-ring to facilitate installation.

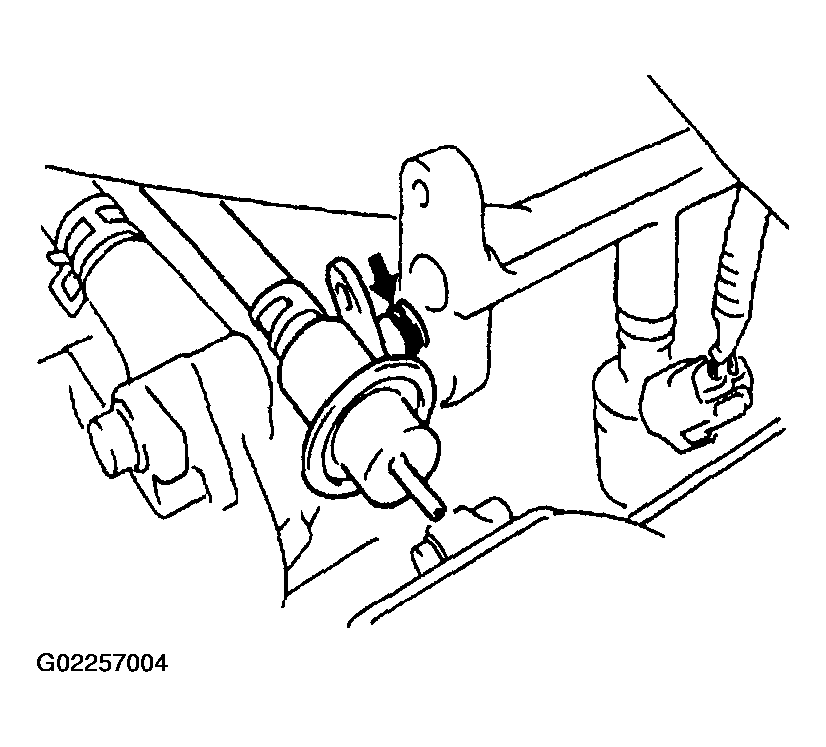

  Fig 1: Installing Fuel Return Hose To Fuel Pressure Regulator

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten fuel pressure regulator bolts to specified torque.

  Tightening torque

  Fuel pressure regulator bolt (a): 10 N.m (1.0 kg-m, 7.5 lb-ft)

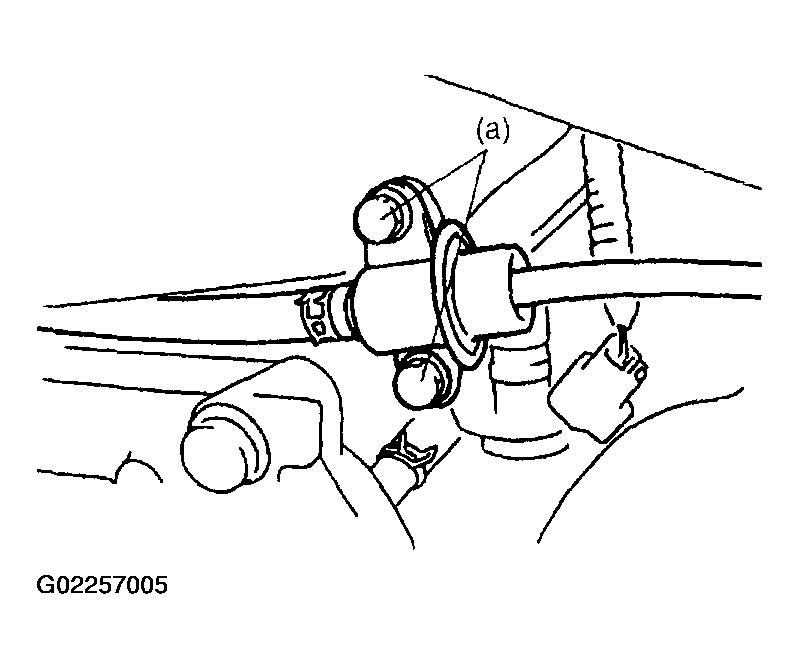

  Fig 2: Tightening Fuel Pressure Regulator Bolt

  Courtesy of SUZUKI OF AMERICA CORP.
• With engine OFF and ignition switch ON, check for fuel leaks around fuel line connection.
