4WD Control System Circuit and Operation

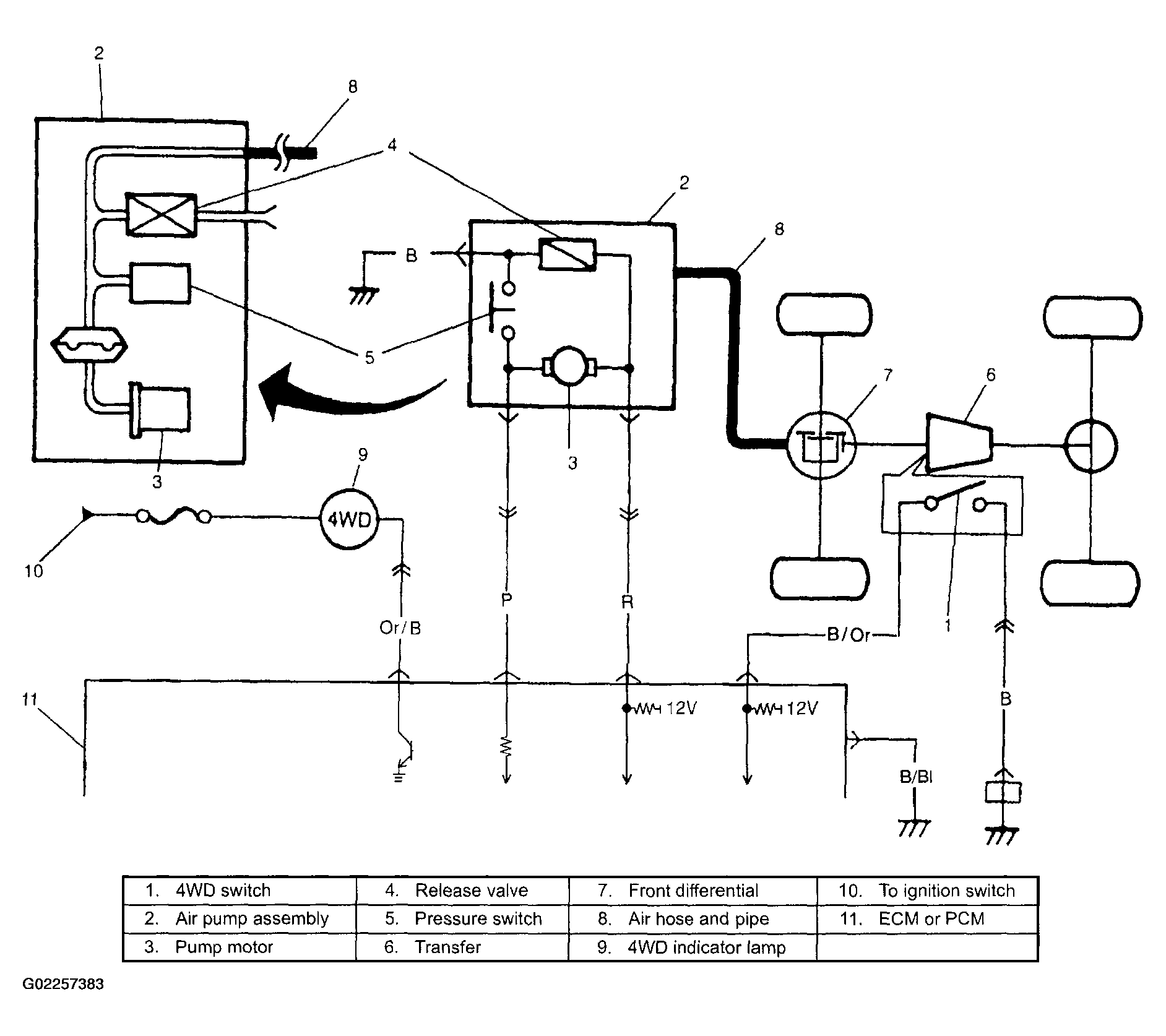

Fig 1: 4WD Control System Circuit & Operation

G02257383

Courtesy of SUZUKI OF AMERICA CORP.
