Front Disc Brake Caliper Assembly Components

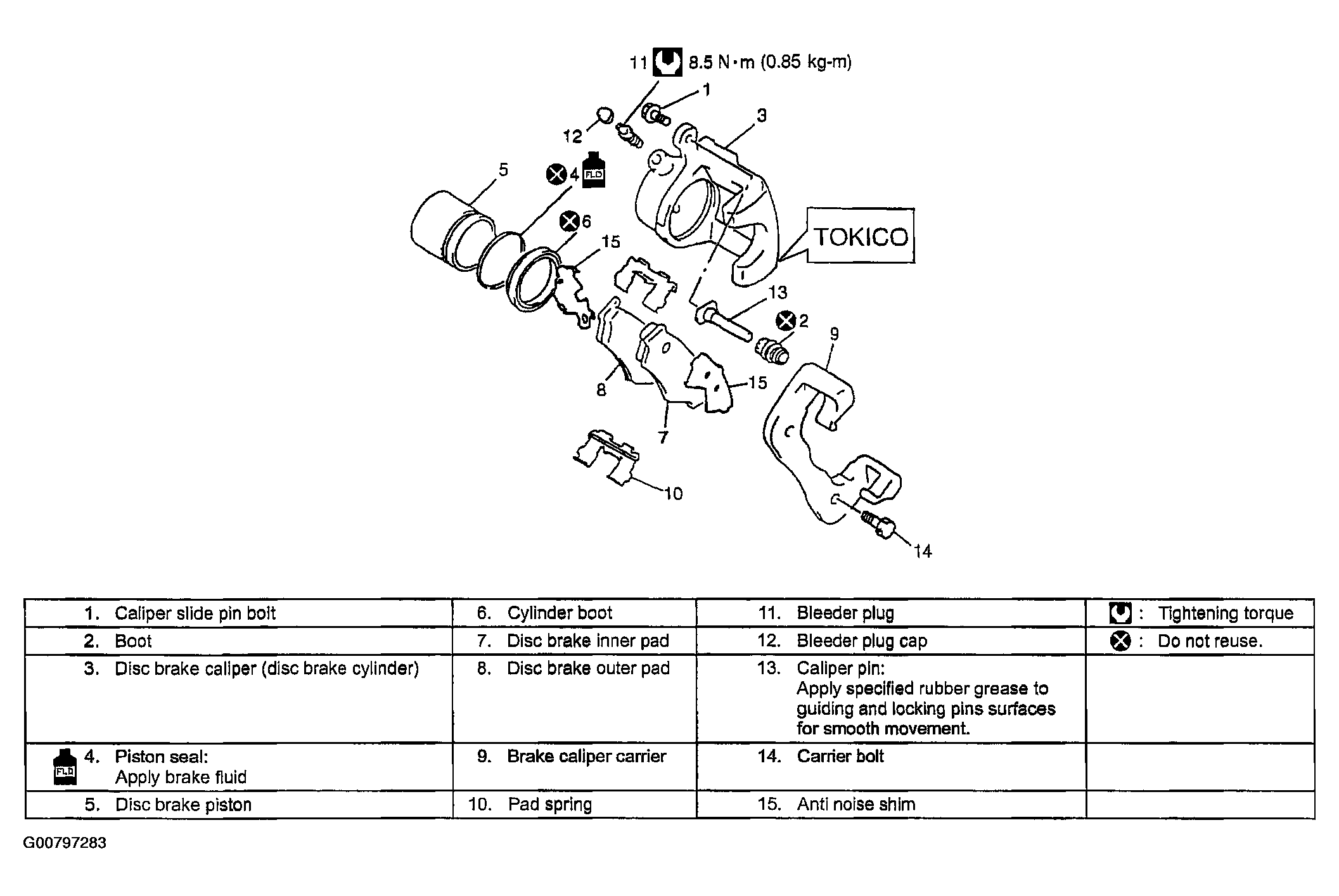

Fig 1: Identifying Front Disc Brake Caliper Assembly Components

G00797283

Courtesy of SUZUKI OF AMERICA CORP.
