Power Window Main Switch Inspection

Inspect switch continuity between terminals.

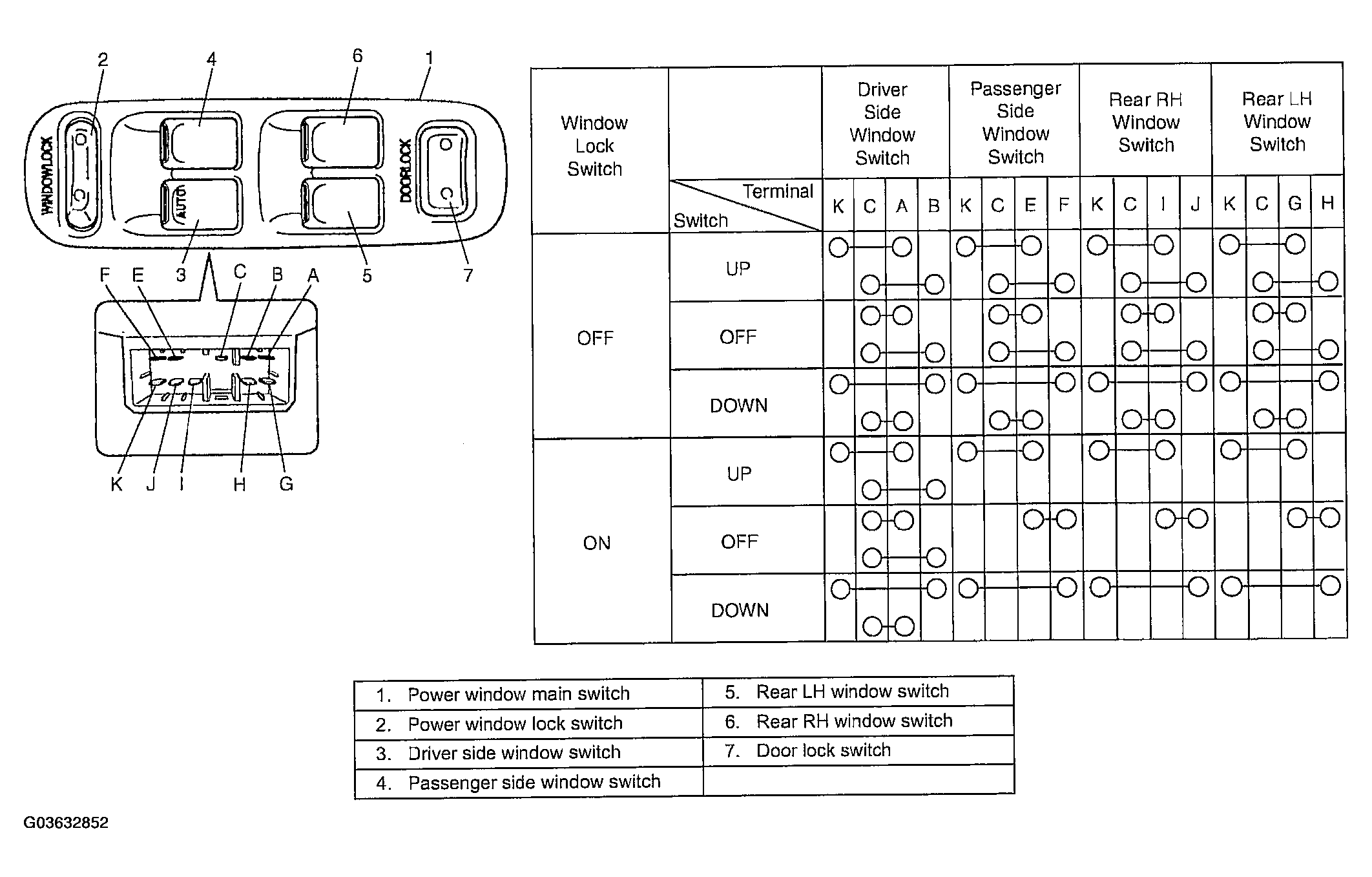

Fig 1: Inspecting Power Window Main Switch

G03632852

Courtesy of SUZUKI OF AMERICA CORP.
