Front Seat Components

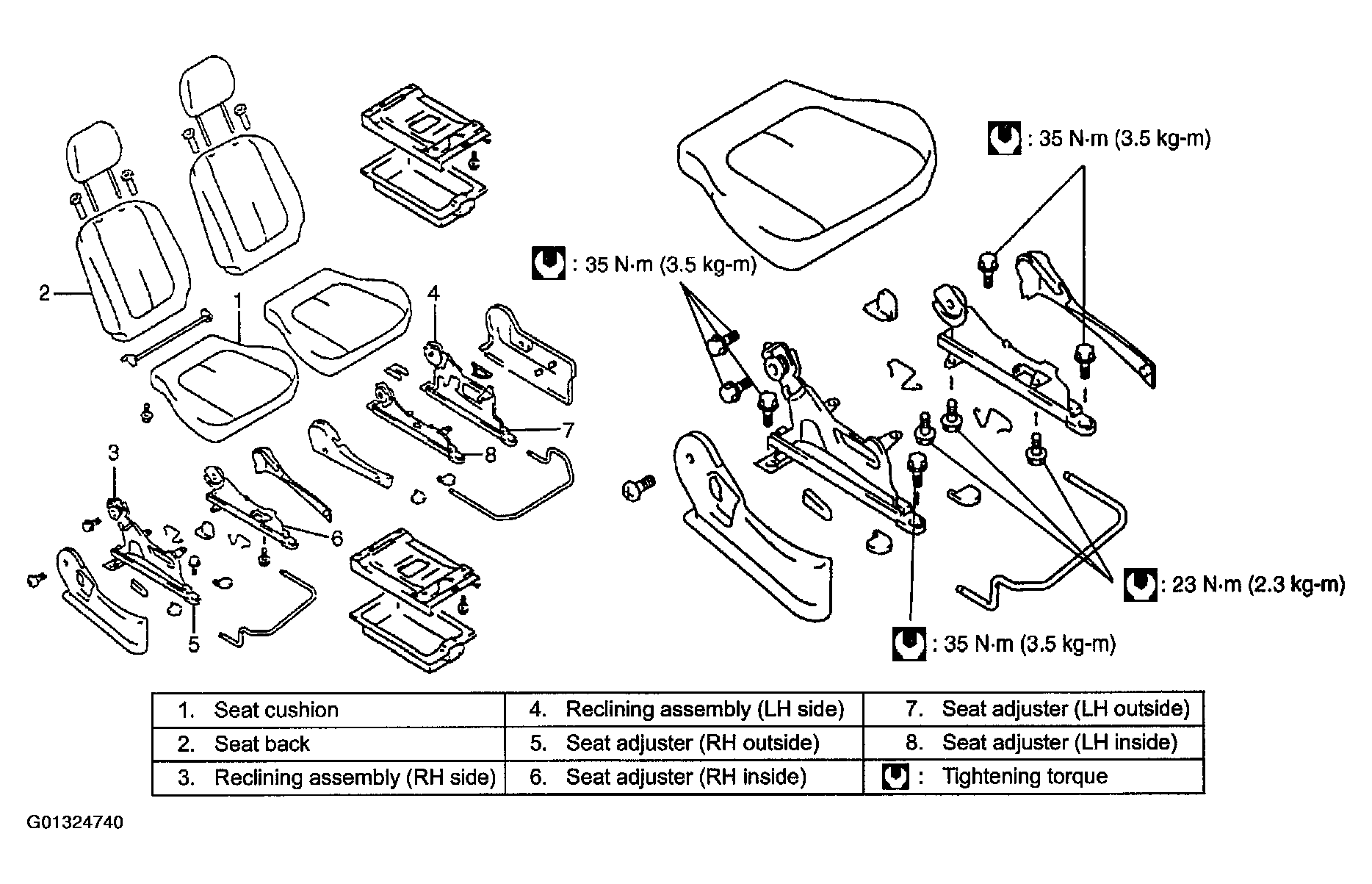

Fig 1: Exploded View Of Front Seat Components

G01324740

Courtesy of SUZUKI OF AMERICA CORP.
