VIS Vacuum Tank Removal

  1. Remove the vacuum hose.
  2. Remove the VIS solenoid.
  3. Remove the VIS vacuum tank.

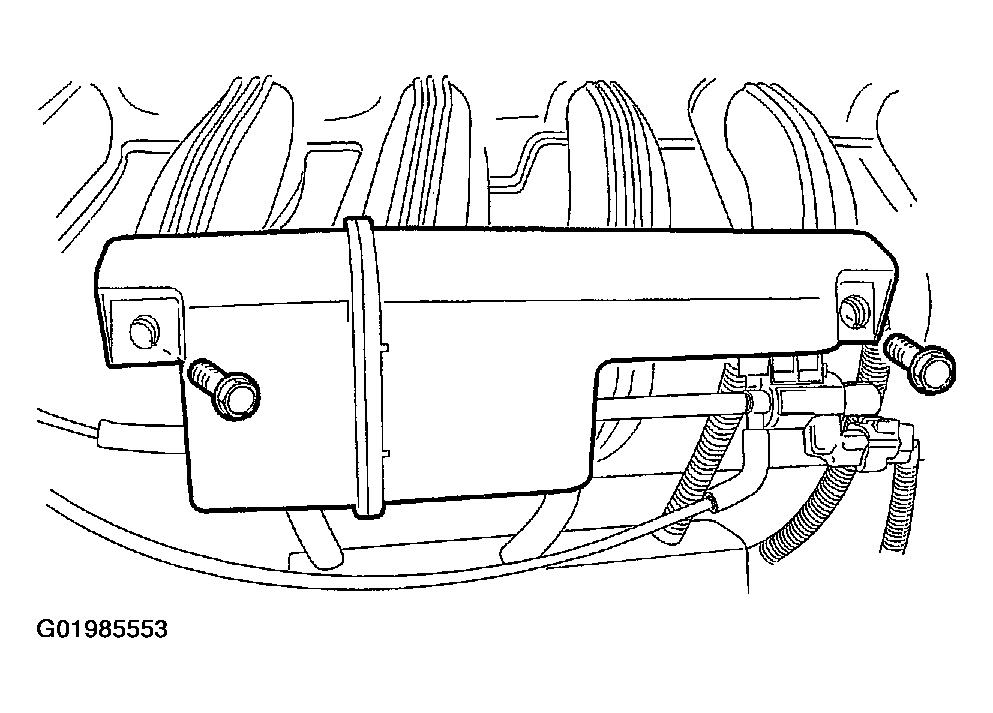

Fig 1: Removing VIS Vacuum Tank
G01985553Courtesy of SUZUKI OF AMERICA CORP.
