Camshaft Position (CMP) Sensor Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the camshaft position (CMP) sensor connector.
  3. Remove the CMP sensor.

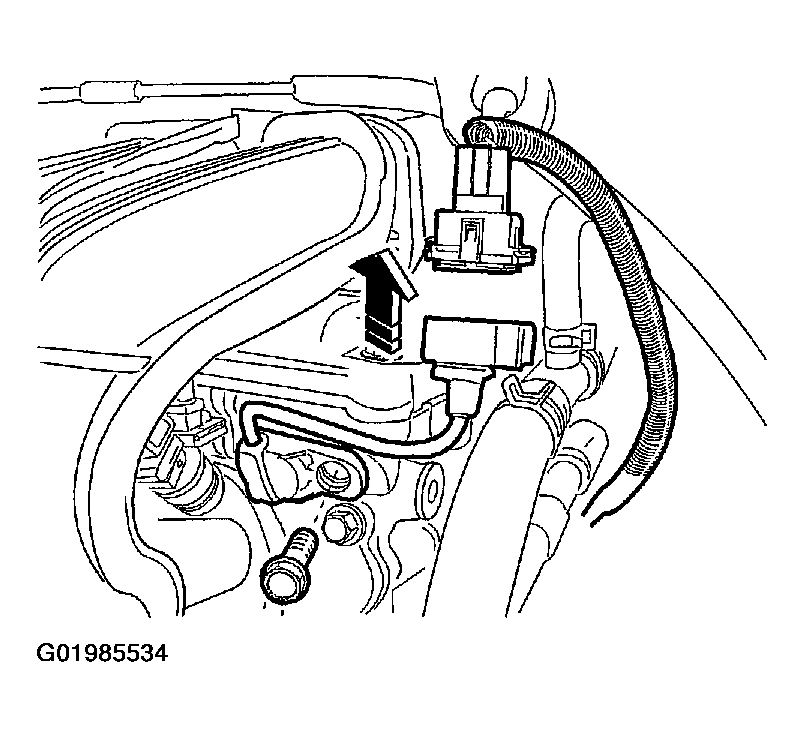

Fig 1: Removing CMP Sensor
G01985534Courtesy of SUZUKI OF AMERICA CORP.
