Home >> Suzuki >> 2004 >> Verona S >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information & Diagnosis >> Diagnostic Information and Procedures >> DTC P0462: Fuel Level Sensor Low Input >> Notes

DTC P0462: Fuel Level Sensor Low Input: Notes

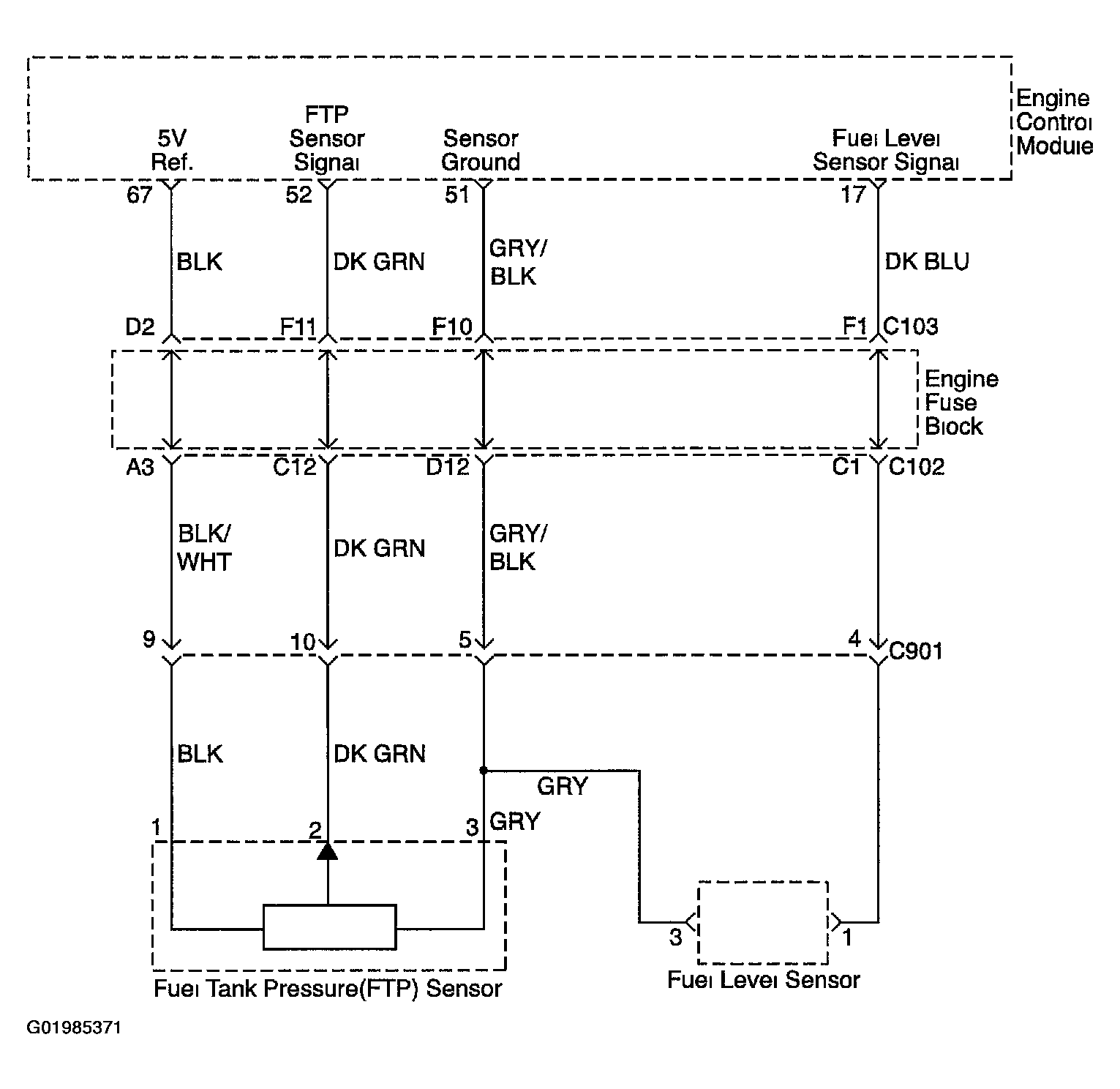

Fig 1: DTC P0462: Fuel Level Sensor Low Input - System Wiring Diagram

G01985371

Courtesy of SUZUKI OF AMERICA CORP.
