Component Location

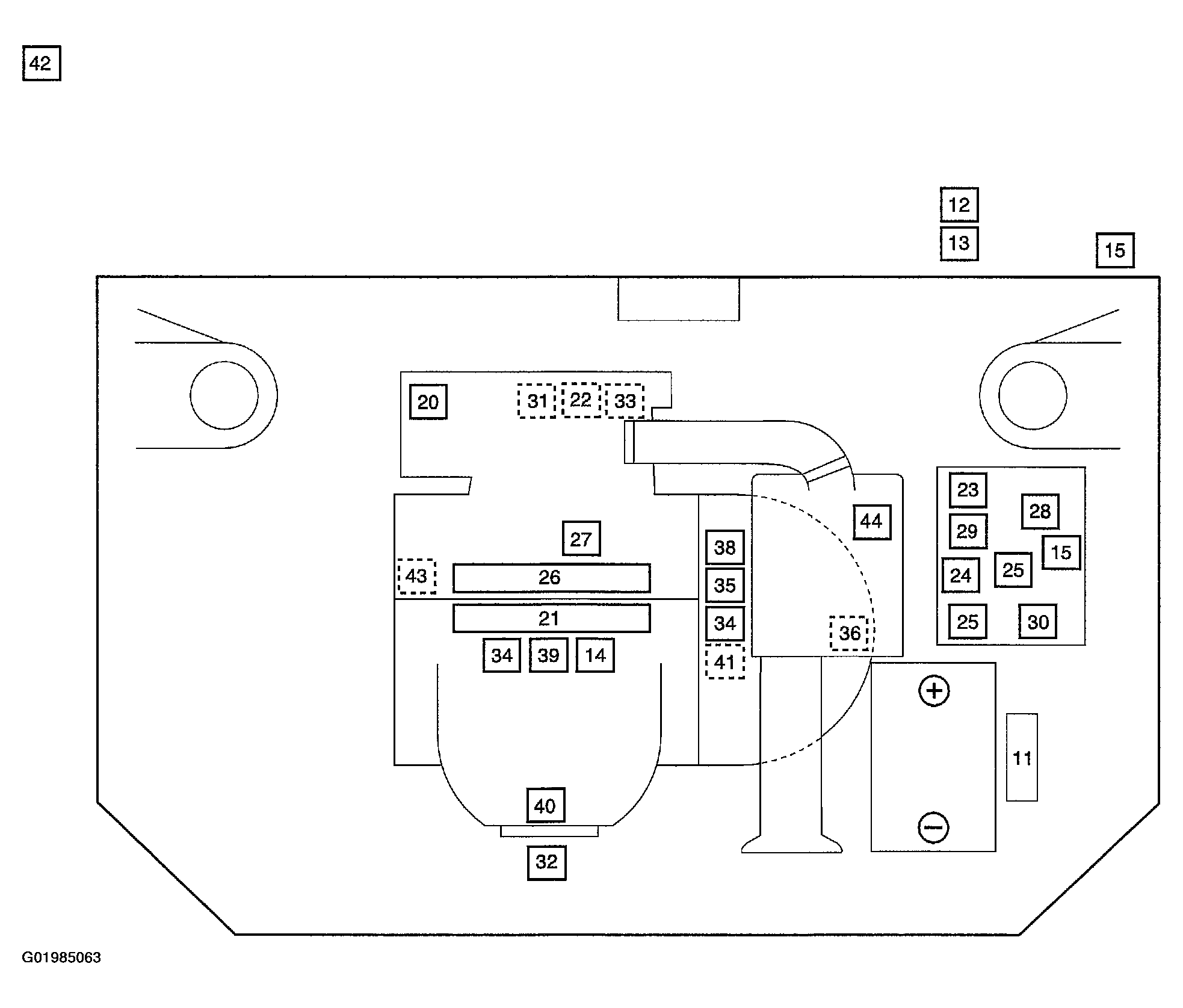

Fig 1: Identifying Component Location (1 Of 2)

G01985063

Courtesy of SUZUKI OF AMERICA CORP.

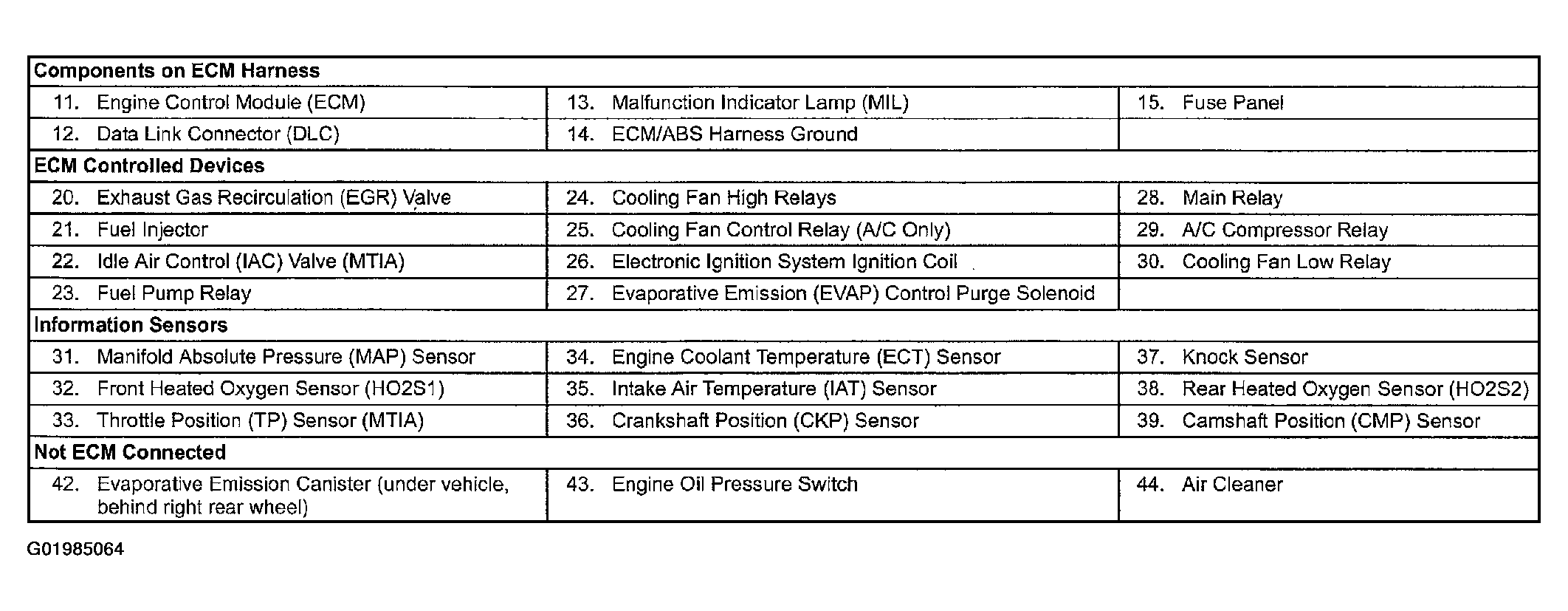

Fig 2: Identifying Component Location (2 Of 2)

G01985064

Courtesy of SUZUKI OF AMERICA CORP.
