Windshield Removal

Tools Required

J-24402 Glass Sealant Remover

1. Remove the cowl vent grille. Refer to COWL VENT GRILLE REMOVAL .
2. Remove the inside rearview mirror.
3. Remove the weatherstrip around the windshield.
   Fig 1: Removing Weatherstrip Around Windshield

   Courtesy of SUZUKI OF AMERICA CORP.

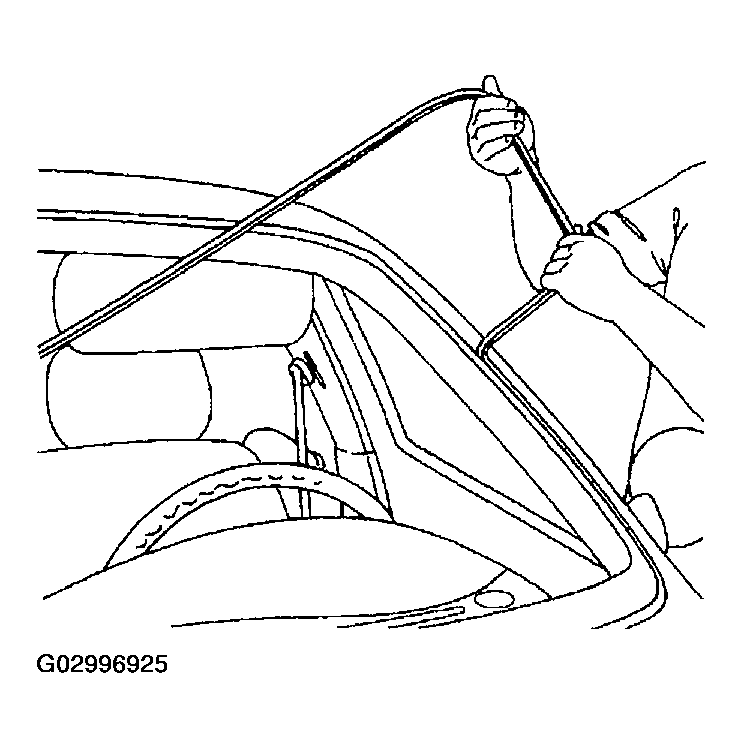

4. Using the glass sealant remover J-24402, cut the adhesive around the windshield.
   Fig 2: Using Glass Sealant Remover J-24402

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove the windshield from the vehicle.
6. Using a knife, remove the adhesive from the windshield.
7. Using a knife, remove the adhesive from the windshield frame.

Fig 3: Removing Adhesive From Windshield Using Knife

Courtesy of SUZUKI OF AMERICA CORP.
