Windshield Installation

  1. Install the new weatherstrip to the windshield.
    Fig 1: Installing New Weatherstrip To Windshield
    G02996928Courtesy of SUZUKI OF AMERICA CORP.
  2. Apply tape to the new weatherstrip and the windshield to hold the weatherstrip in place.
  3. Apply adhesive primer to the windshield frame and the perimeter of the windshield.

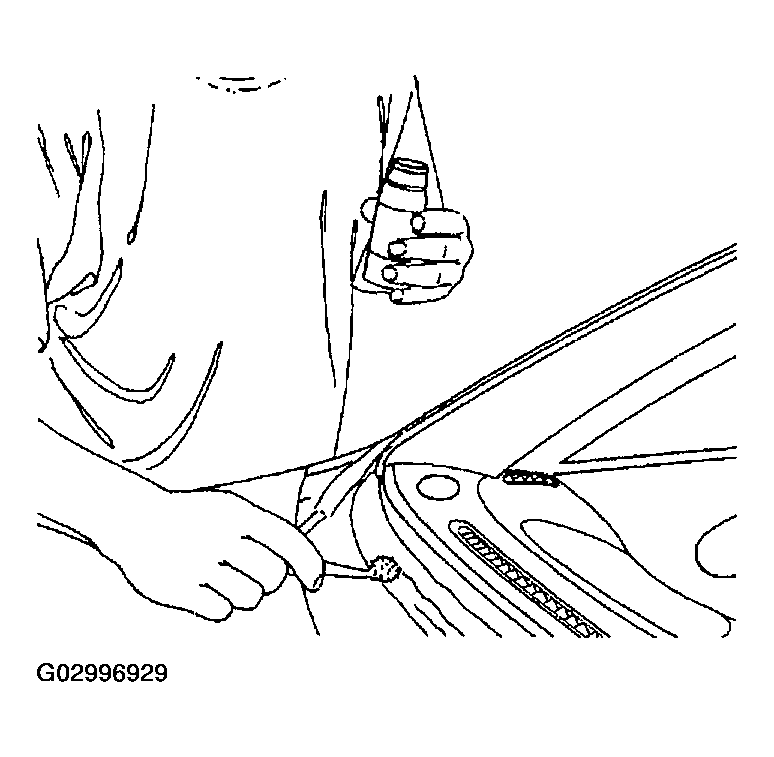

    Fig 2: Applying Adhesive Primer To Windshield Frame
    G02996929Courtesy of SUZUKI OF AMERICA CORP.
  4. Apply glass adhesive to the windshield frame.
  5. Install the windshield into the windshield frame.
  6. Reposition the tape over the weatherstrip, the windshield, and the windshield frame to hold the windshield in place.
  7. Let the adhesive dry for 24 hours.
  8. Remove the tape.
  9. Check for waterleaks by pouring water on the windshield. If a leak is found, dry the windshield and fill the area that leaks with adhesive. If the leak persists, remove the windshield and repeat the entire procedure.
  10. Install the inside rearview mirror. Refer to Inside Rearview Mirror Installation  .
  11. Install the cowl vent grille. Refer to COWL VENT GRILLE INSTALLATION .

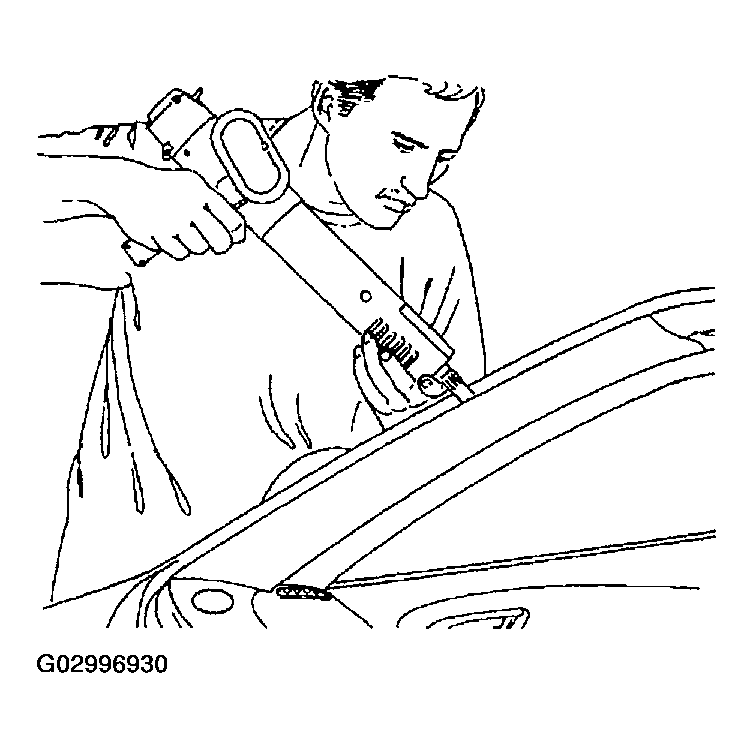

Fig 3: Applying Additional Adhesive (If Needed)
G02996930Courtesy of SUZUKI OF AMERICA CORP.
