Home >> Suzuki >> 2004 >> Verona EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> On-Vehicle Service & Overhaul >> Specifications >> Tightening Torque Specifications

Tightening Torque Specifications

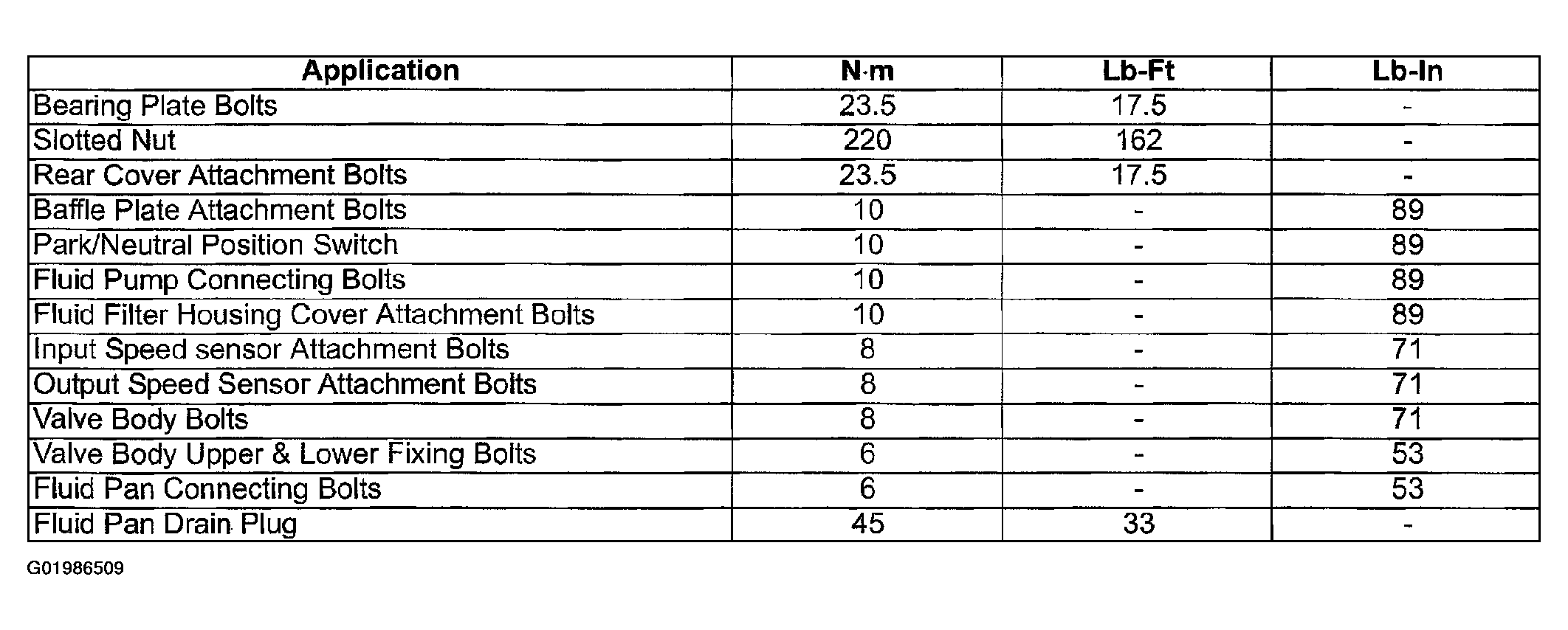

Fig 1: Tightening Torque Specifications Table (1 Of 2)
G01986509Courtesy of SUZUKI OF AMERICA CORP.

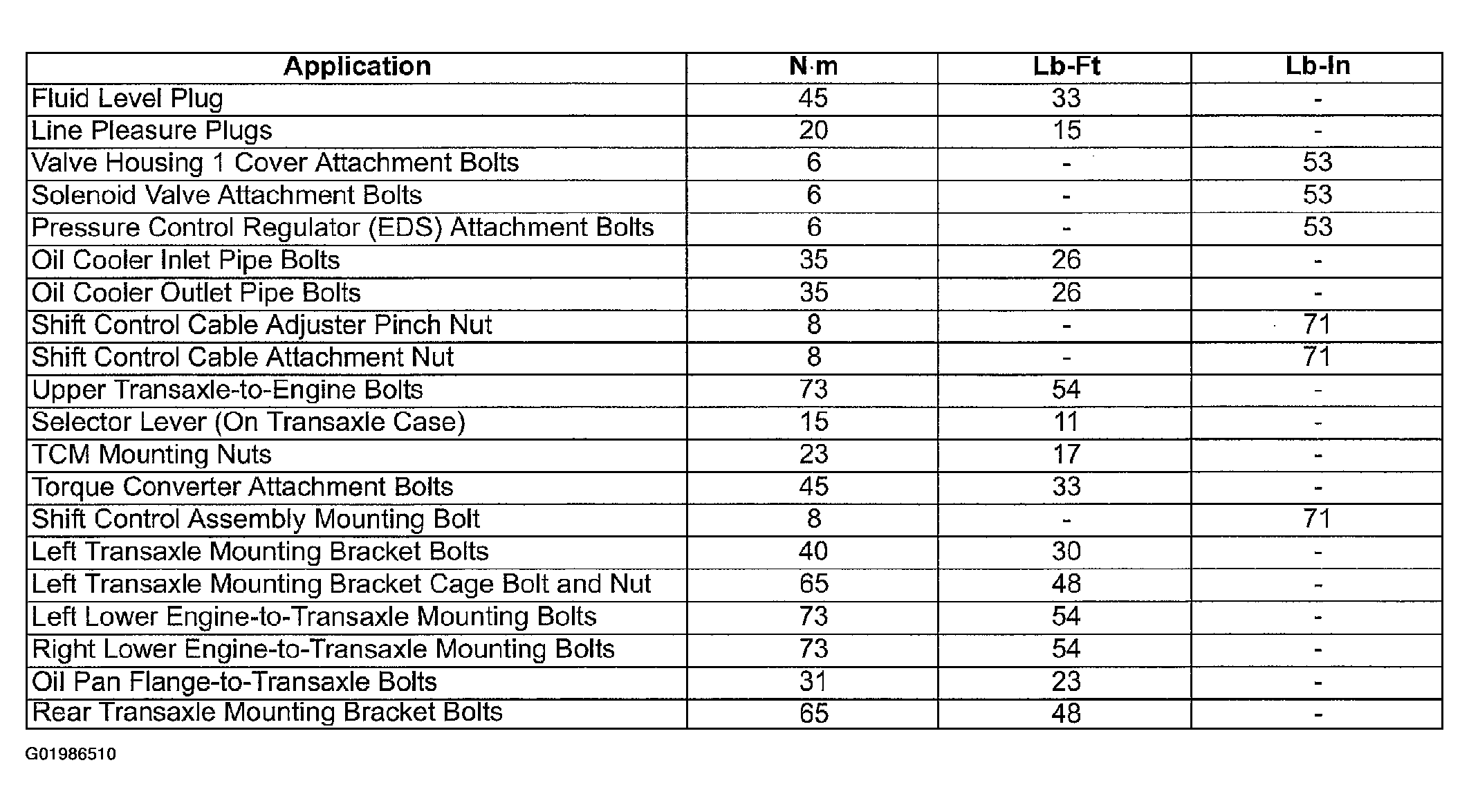

Fig 2: Tightening Torque Specifications Table (2 Of 2)
G01986510Courtesy of SUZUKI OF AMERICA CORP.
