Home >> Suzuki >> 2004 >> Verona EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis >> Diagnostic Information and Procedures >> DTC P0603: Internal Control Module Keep Alive Memory (KAM) Error >> Notes

DTC P0603: Internal Control Module Keep Alive Memory (KAM) Error: Notes

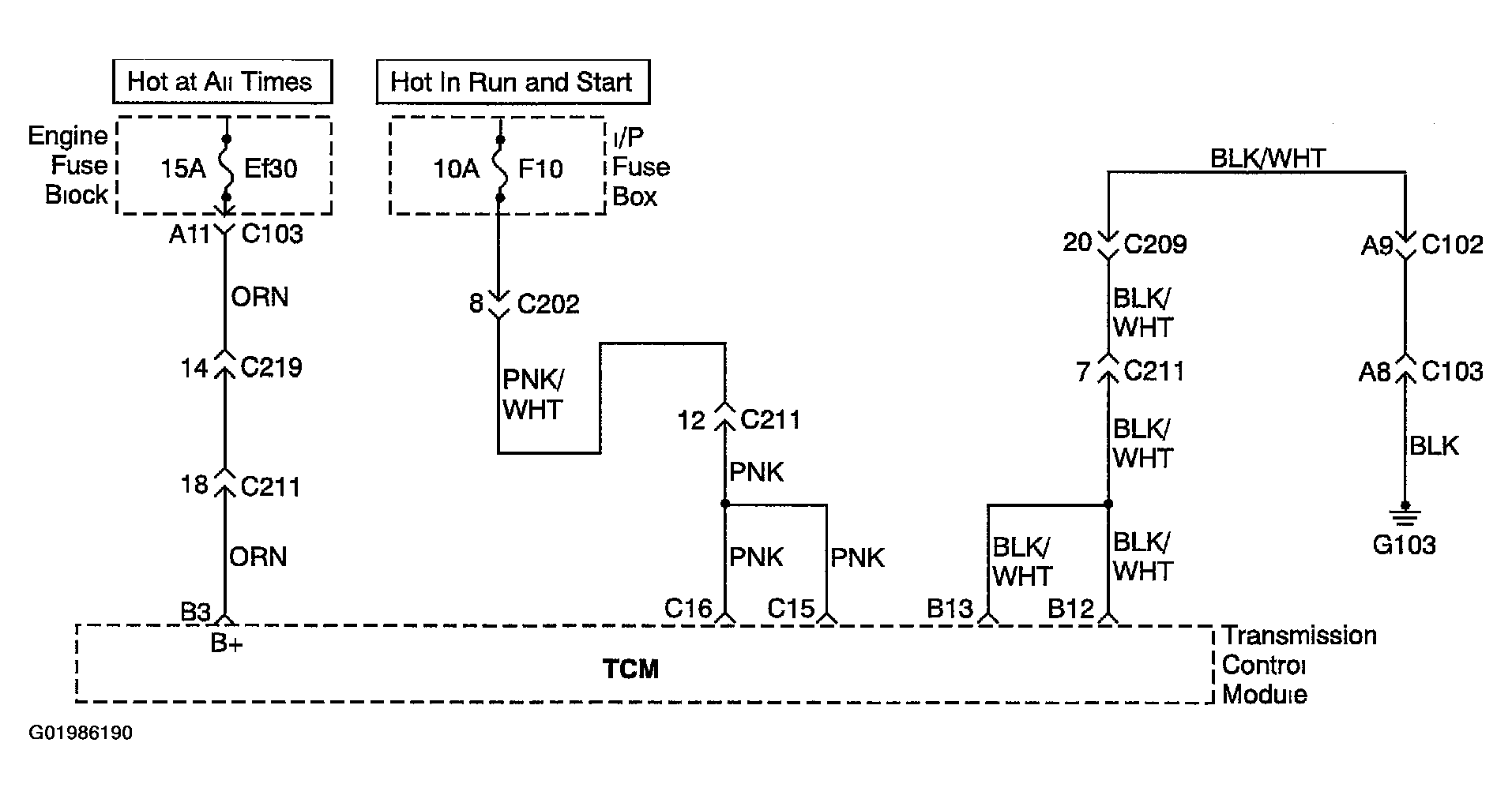

Fig 1: DTC P0603: Internal Control Module Keep Alive Memory (KAM) Error - Diagnostic Wiring Diagram
G01986190Courtesy of SUZUKI OF AMERICA CORP.
