Tightening Torque Specifications

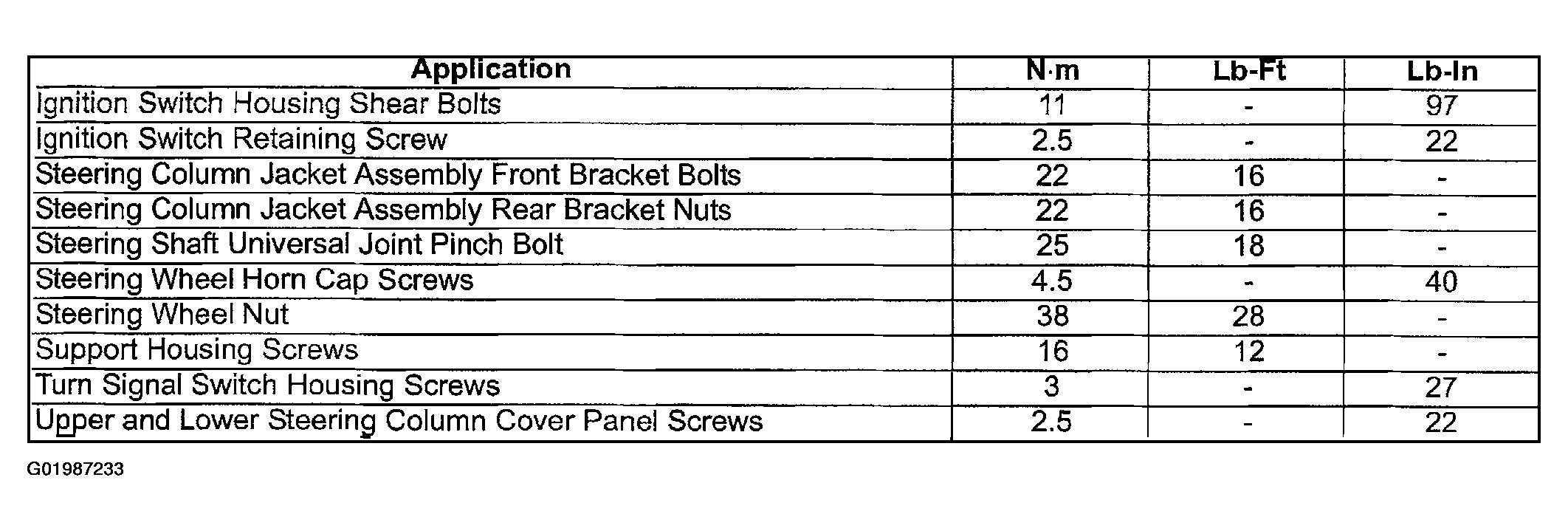

Fig 1: Steering Wheel & Column Tightening Torque Specifications Chart

G01987233

Courtesy of SUZUKI OF AMERICA CORP.
