P/S Pump Assembly

  1. Press the power steering pump pulley onto the power steering pump using a hydraulic press.
  2. Install the power steering pump pulley nut.
    1. Tighten the power steering pump pulley nut to 61 N.m (45 lb-ft).
  3. Install the power steering pump onto the vehicle. Refer to P/S Pump Assembly Installation  in this section.

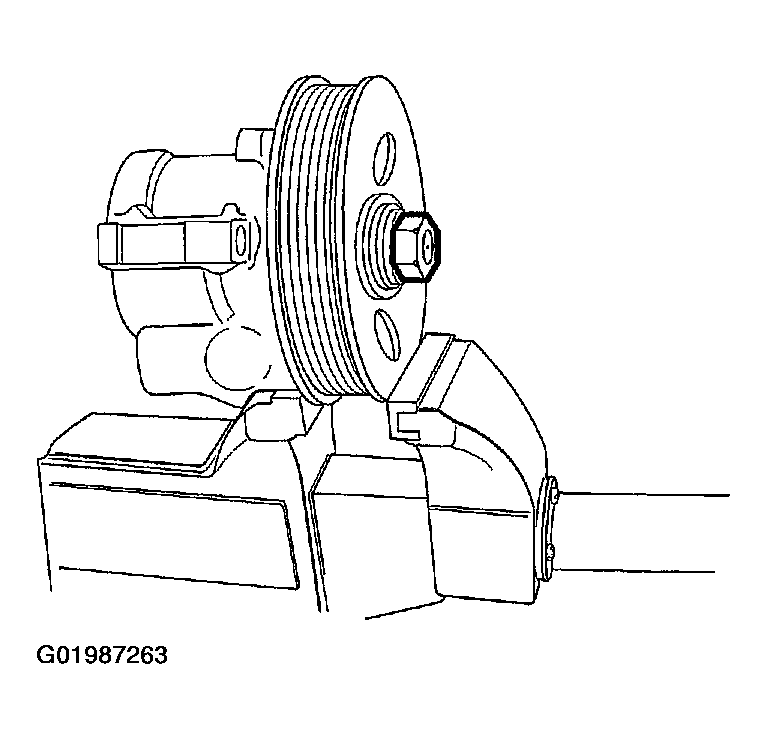

Fig 1: Installing Power Steering Pump Onto Vehicle
G01987263Courtesy of SUZUKI OF AMERICA CORP.
