Dust Boot Installation

  1. Install the dust boot.

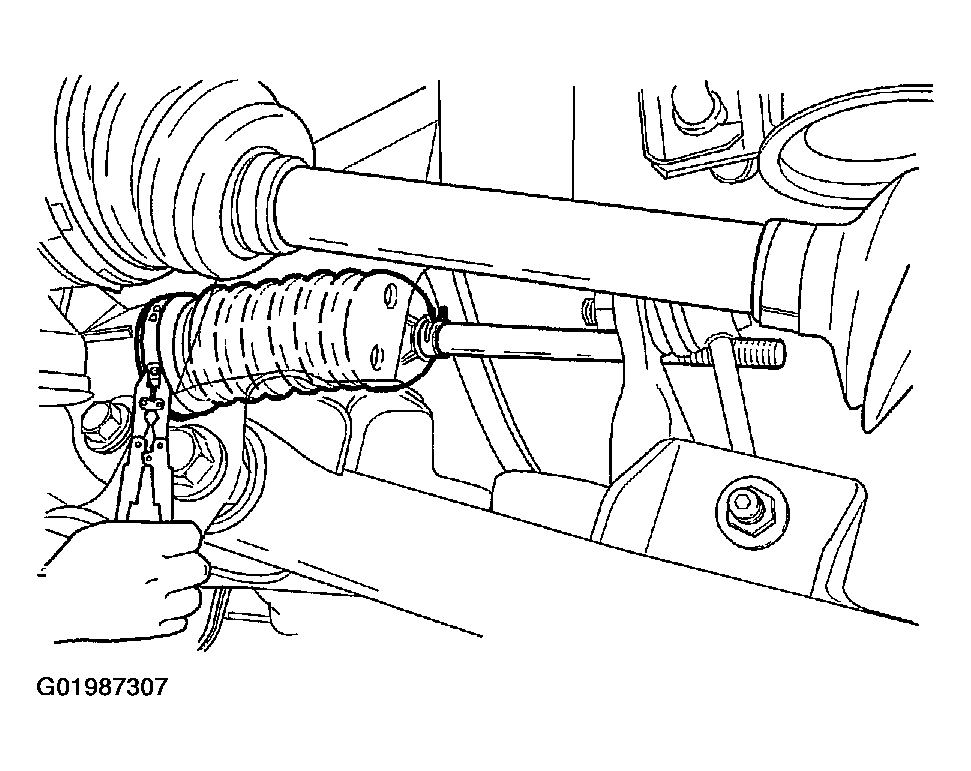

  2. Install the tie rod end dust boot retaining clamp. Install the cylinder end dust boot retaining clamp with the installer KM-J-22610.
  3. Install the outer tie rod. Refer to Outer Tie Rod Removal  .
  4. Install the wheel.
  5. Lower the vehicle.
Fig 1: Lowering Vehicle
G01987307Courtesy of SUZUKI OF AMERICA CORP.
