Manifold Absolute Pressure Check: Notes

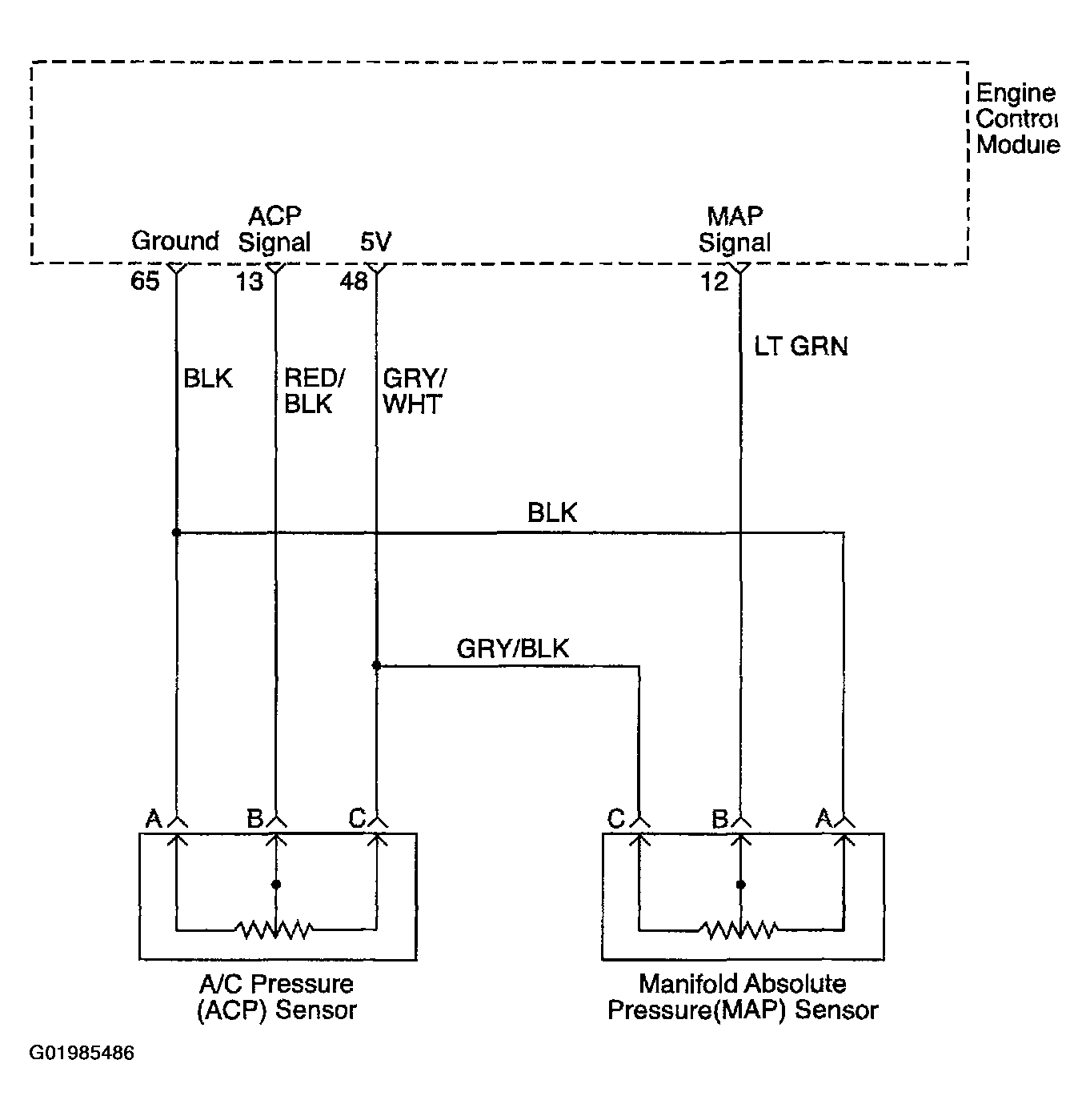

Fig 1: Manifold Absolute Pressure Check - System Wiring Diagram
G01985486Courtesy of SUZUKI OF AMERICA CORP.
