DTC P0461: Fuel Level Sensor Circuit Rationality Check: Notes

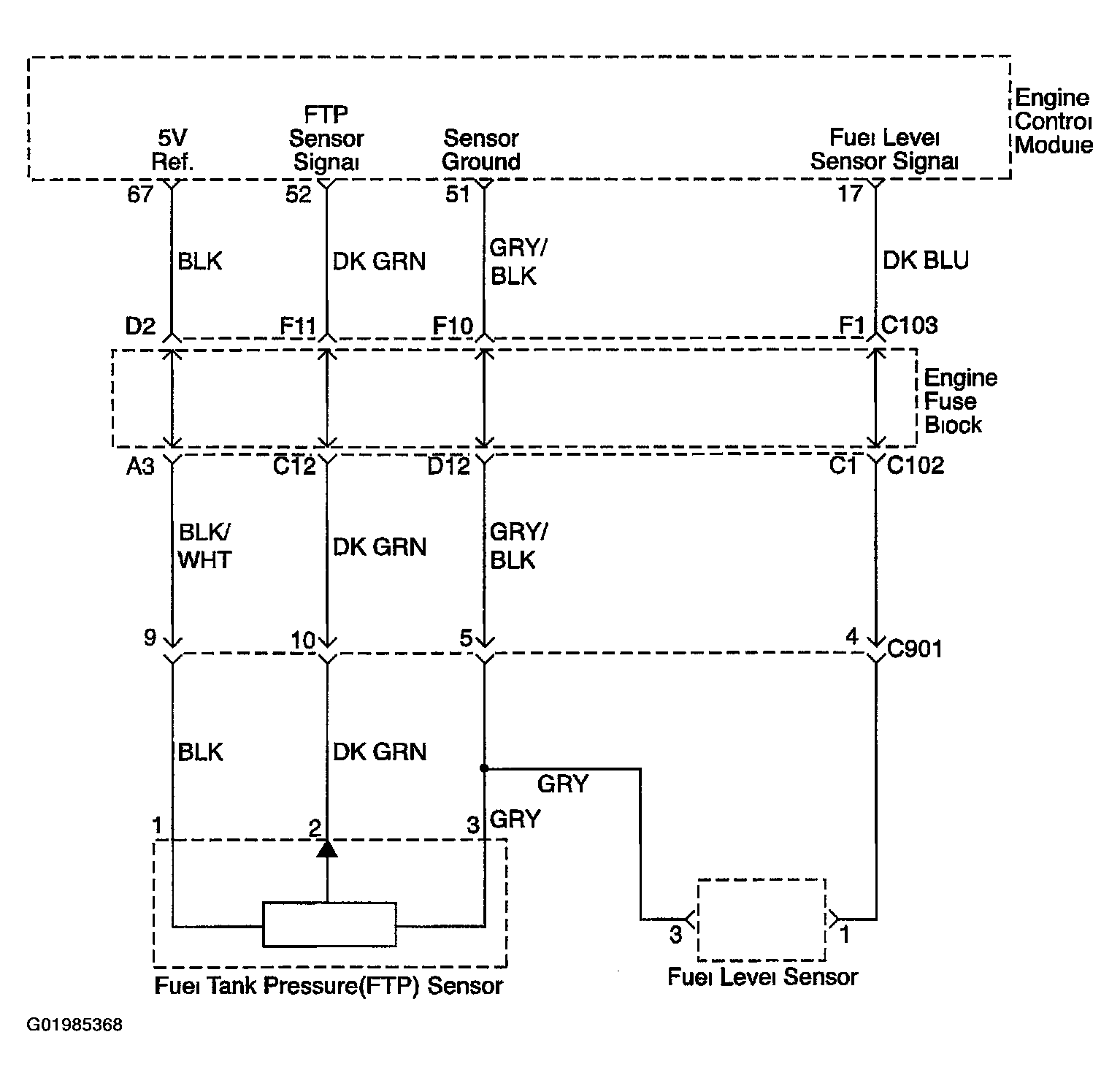

Fig 1: DTC P0461: Fuel Level Sensor Circuit Rationality Check - System Wiring Diagram

G01985368

Courtesy of SUZUKI OF AMERICA CORP.
