DTC P0123: Throttle Position Sensor High Input: Notes

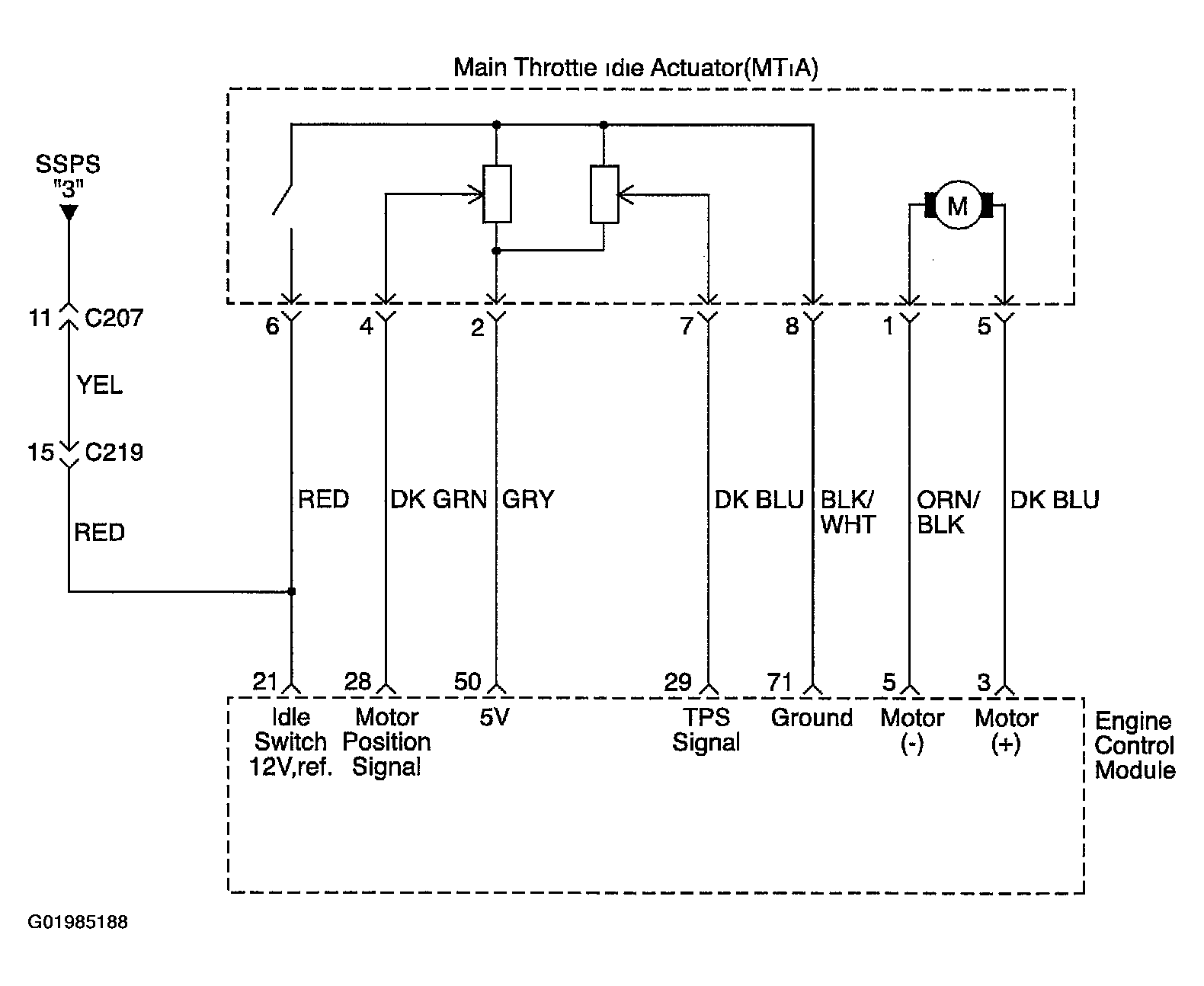

Fig 1: DTC P0123: Throttle Position Sensor High Input - System Wiring Diagram

G01985188

Courtesy of SUZUKI OF AMERICA CORP.
