Wiring Diagrams

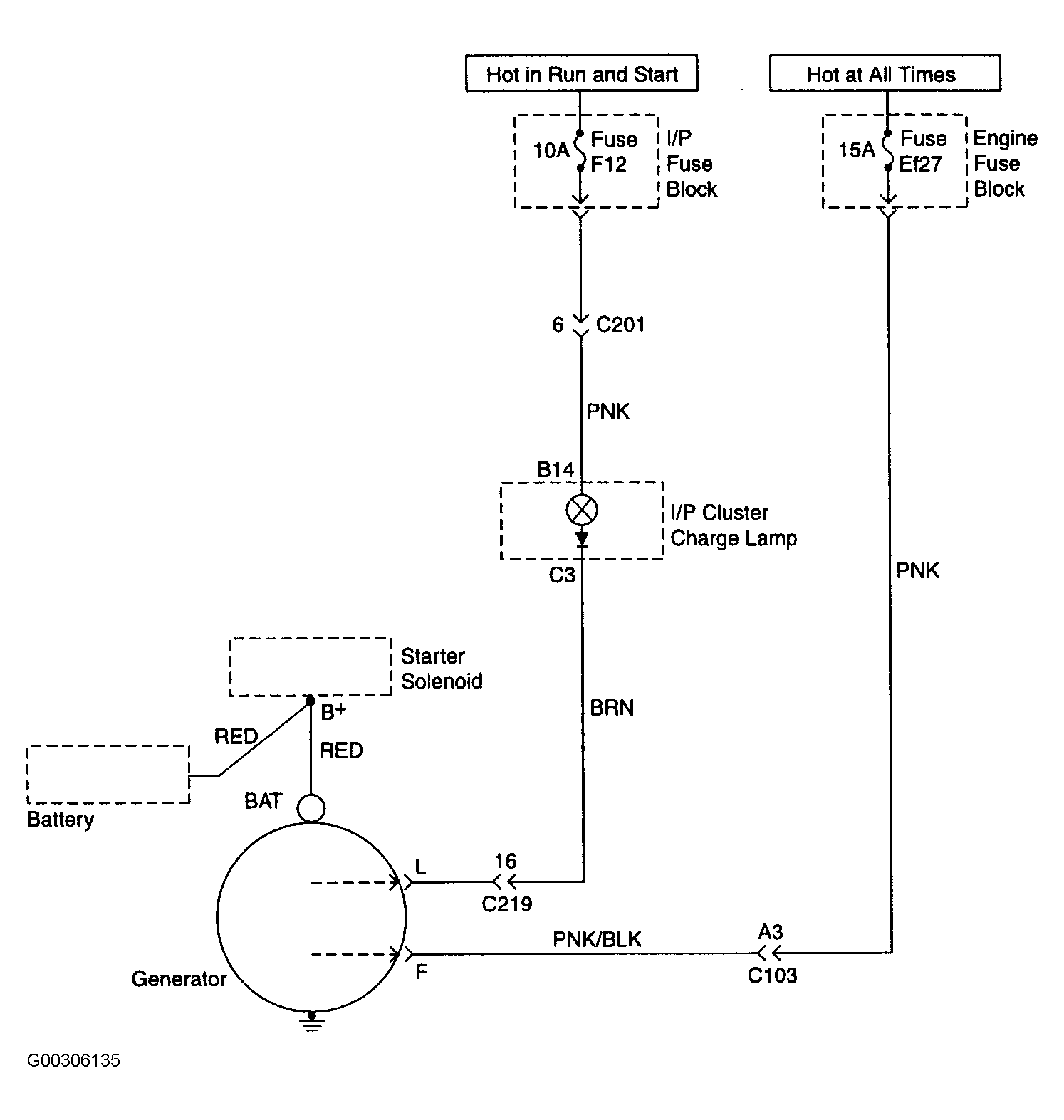

Fig 1: Charging System Wiring Diagram (2004 Verona)

G00306135

Courtesy of SUZUKI OF AMERICA CORP.
