Hood Open Switch Installation

  1. Install the hood open switch with the mounting bolt and nut.
    1. Tighten the hood open switch mounting bolt to 4 N.m (35 lb-in).
  2. Connect the electrical connector to the hood open switch.
  3. Connect the negative battery cable.

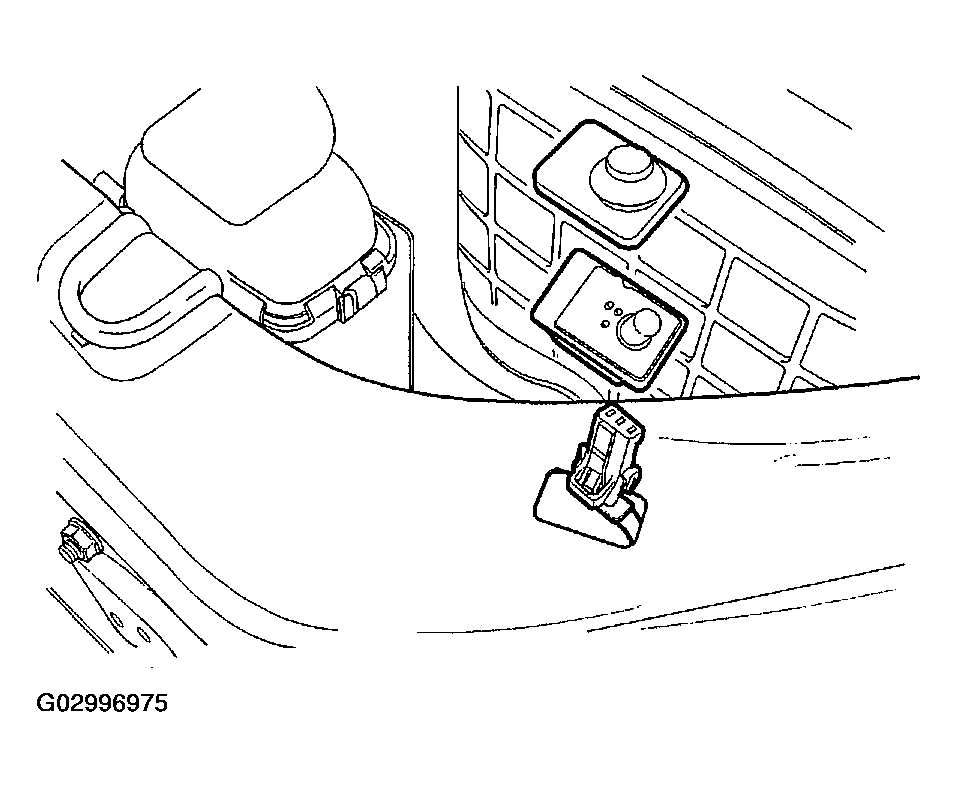

Fig 1: Installing Hood Open Switch
G02996975Courtesy of SUZUKI OF AMERICA CORP.
