DTC P0604: Internal Control Module Random Access Memory (RAM) Error: Notes

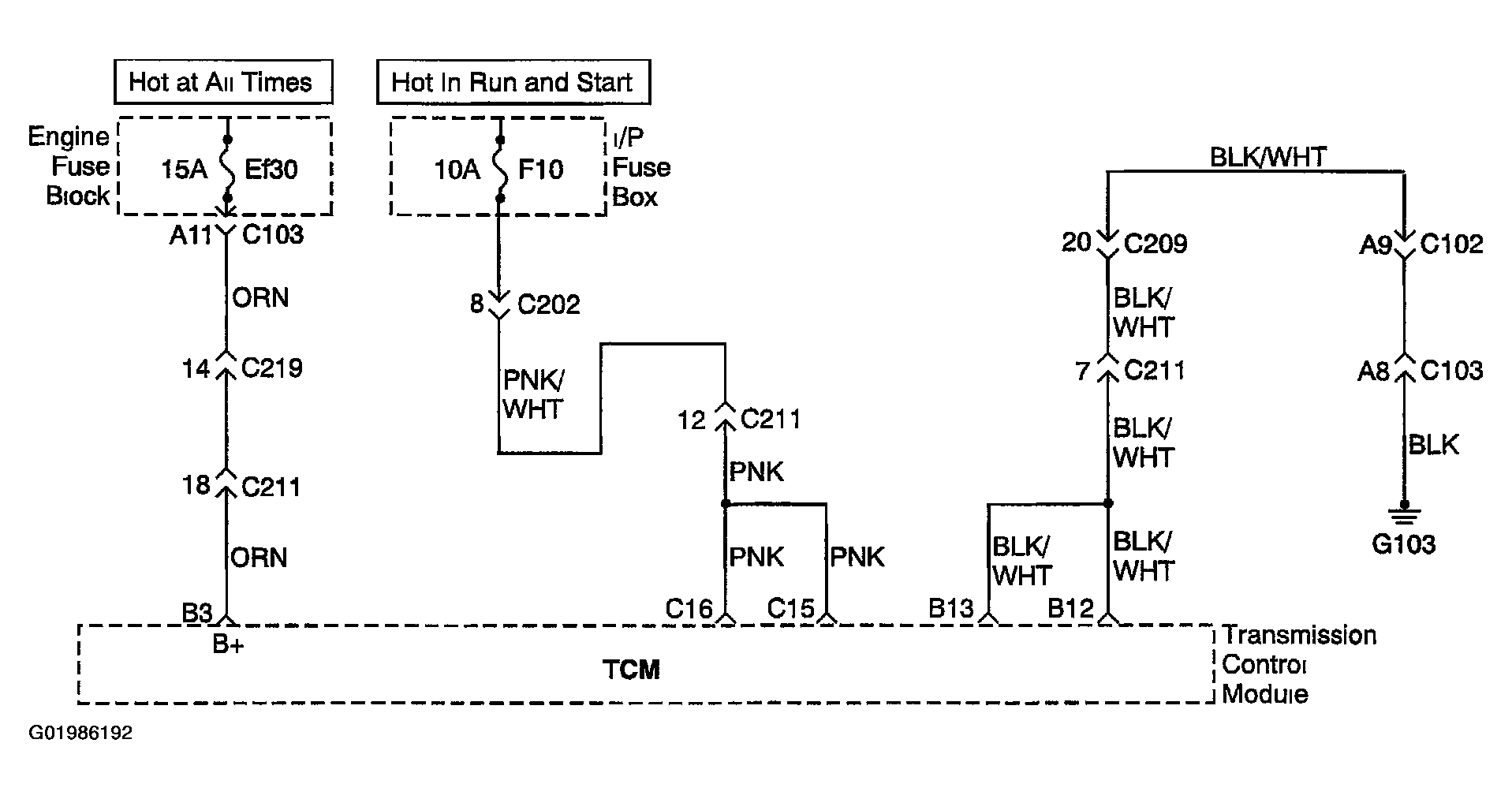

Fig 1: DTC P0604: Internal Control Module Random Access Memory (RAM) Error - Diagnostic Wiring Diagram
G01986192Courtesy of SUZUKI OF AMERICA CORP.
