Installation Procedure

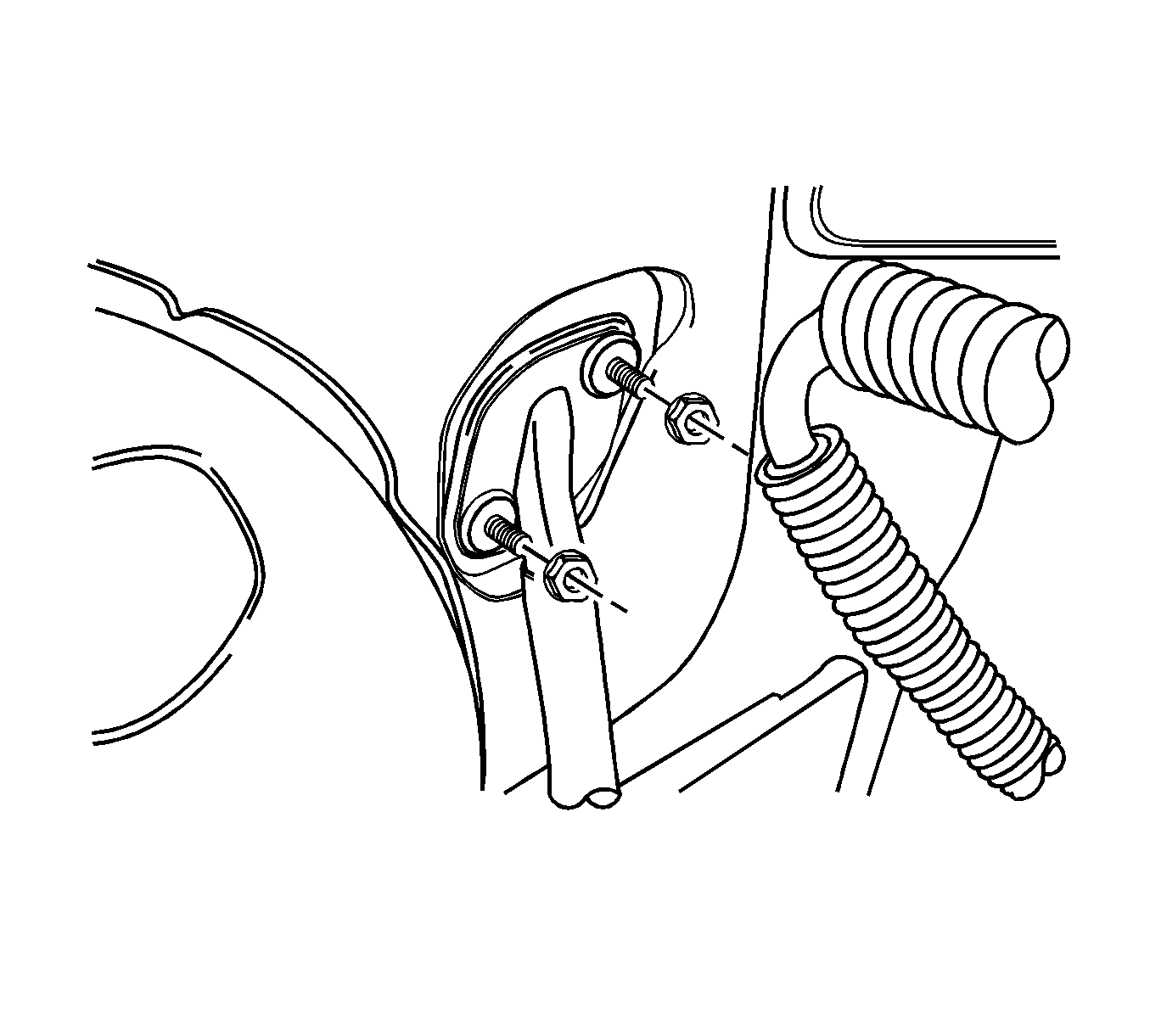

    Fig 1: Clutch Control Cable & Cowl Mounting Nuts
    GM1375556Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the clutch control cable to cowl and install the clutch control cable mounting nuts.

    Tighten:  Tighten the nuts 13 N.m (115 lb in).

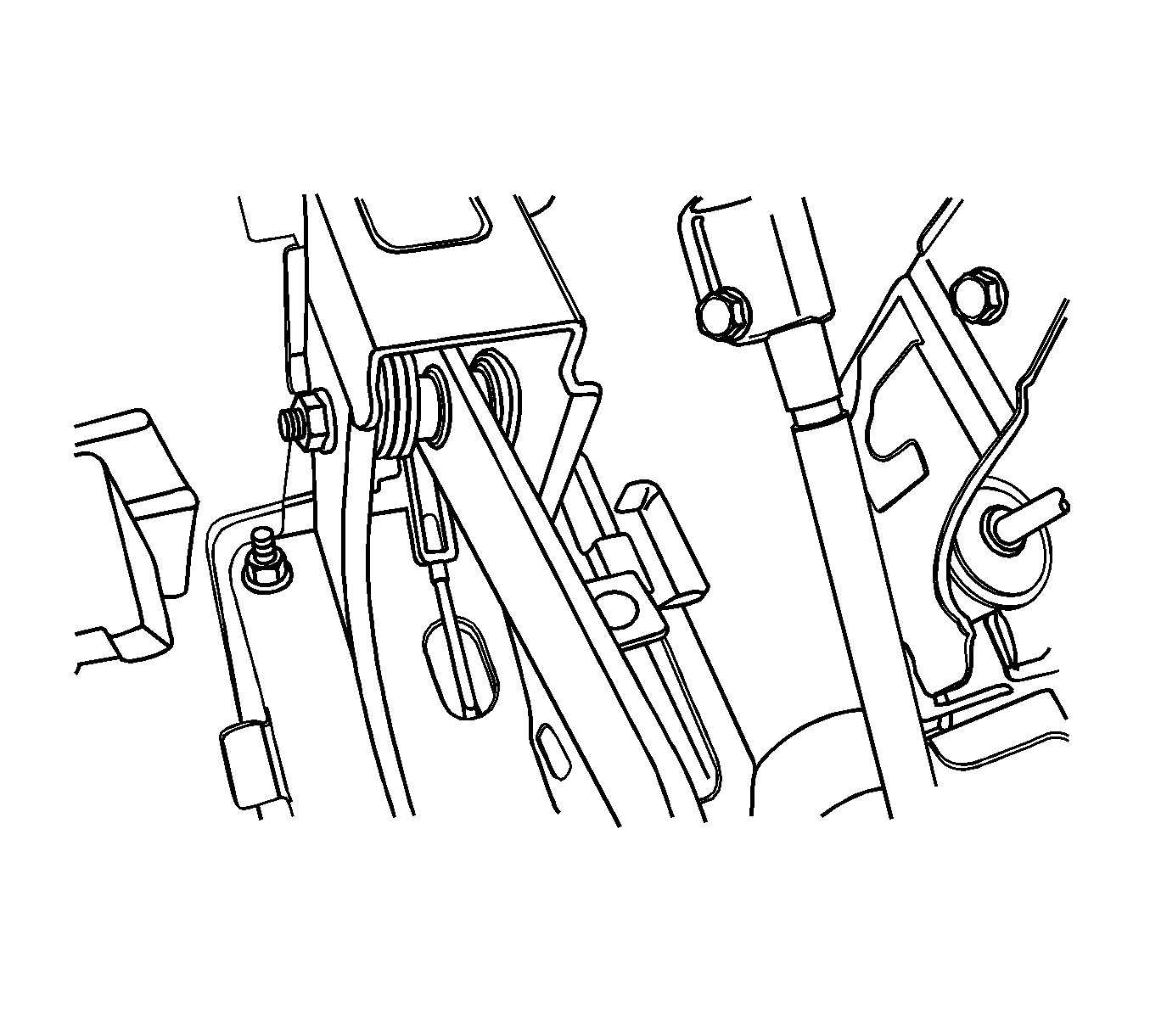

    2. Fig 2: Clutch Control Cable & Clutch Pedal
    GM1375555Courtesy of GENERAL MOTORS CORP.
  2. Install the battery. Refer to Battery and Battery Tray Replacement in Engine Electrical.
  3. Connect the clutch control cable to the clutch pedal.

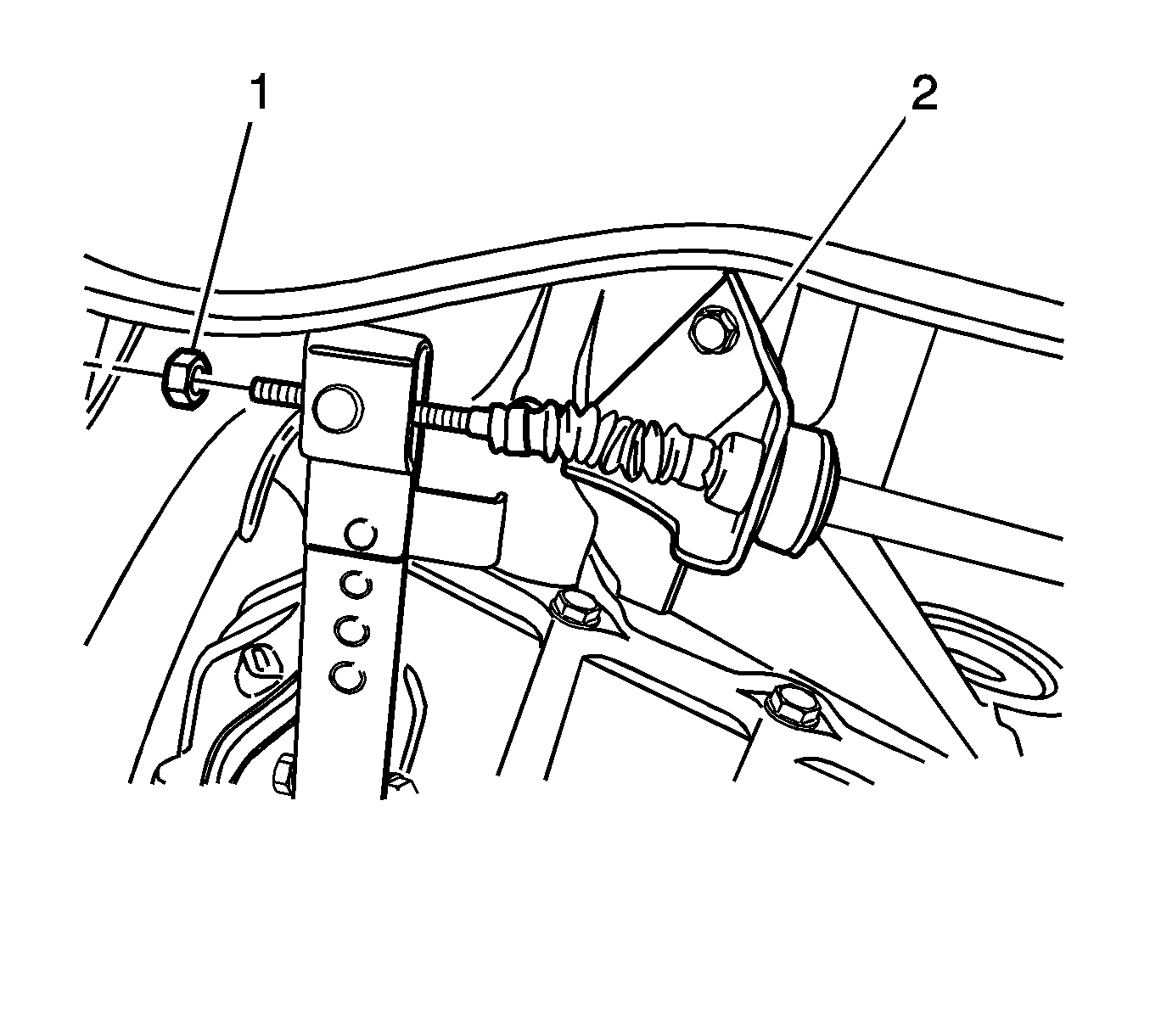

    4. Fig 3: Clutch Control Cable Adjusting Nut & Mounting Bracket
    GM1291936Courtesy of GENERAL MOTORS CORP.
  4. Install the clutch control cable tot he mounting bracket (2).
  5. Install the clutch control cable-adjusting nut (1).
  6. Adjust the clutch control cable.
