Harness Routing Views

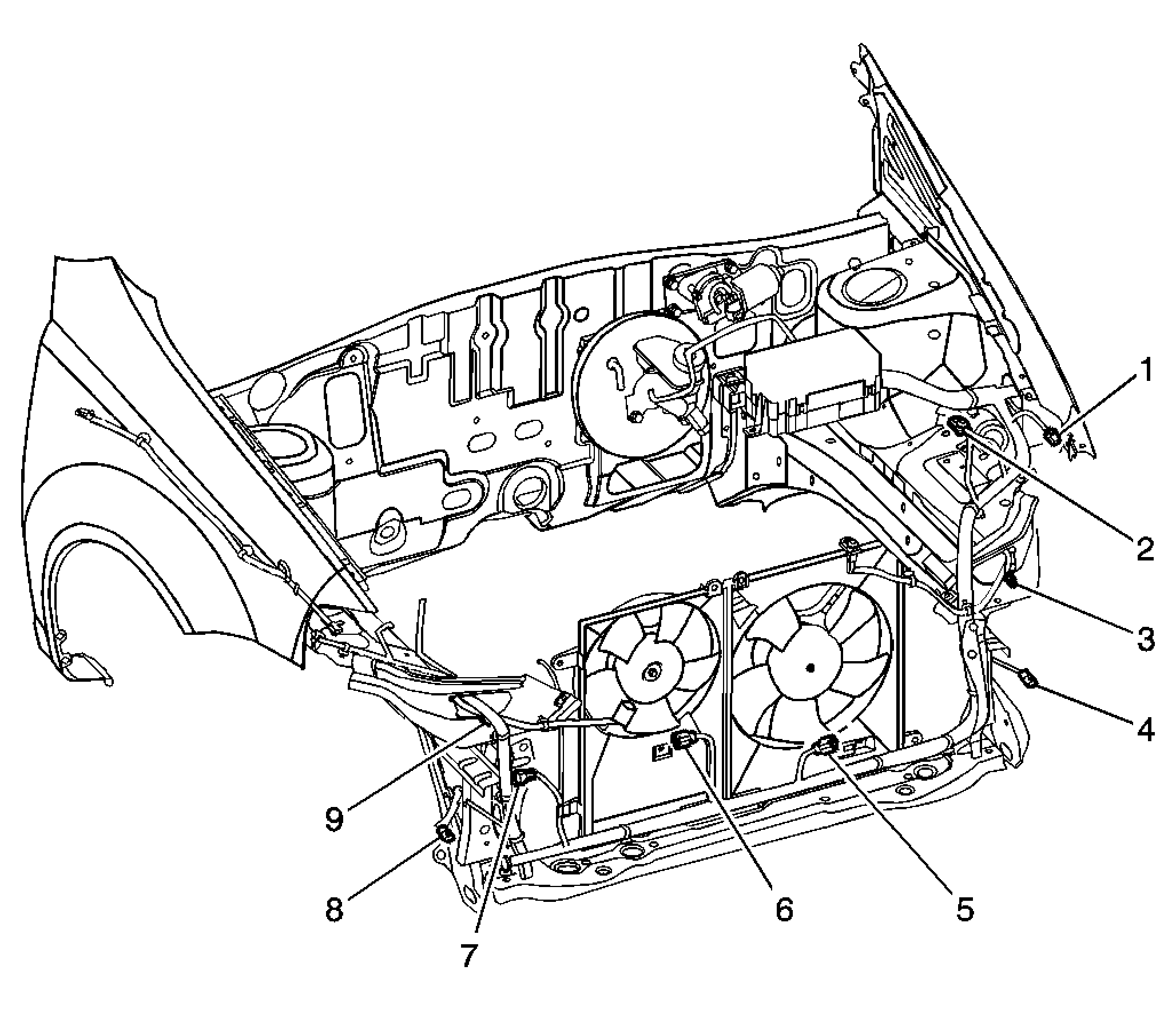

| Callout | Component Name |
|---|---|
| 1 | Position Lamp |
| 2 | Theft Deterrent Alarm |
| 3 | Turn Signal Lamp - LH Front |
| 4 | Fog Lamp - LH Front |
| 5 | Cooling Fan - Main |
| 6 | Cooling Fan - Auxiliary |
| 7 | A/C Compressor |
| 8 | Fog Lamp - RH Front |
| 9 | Position Lamp - RH |

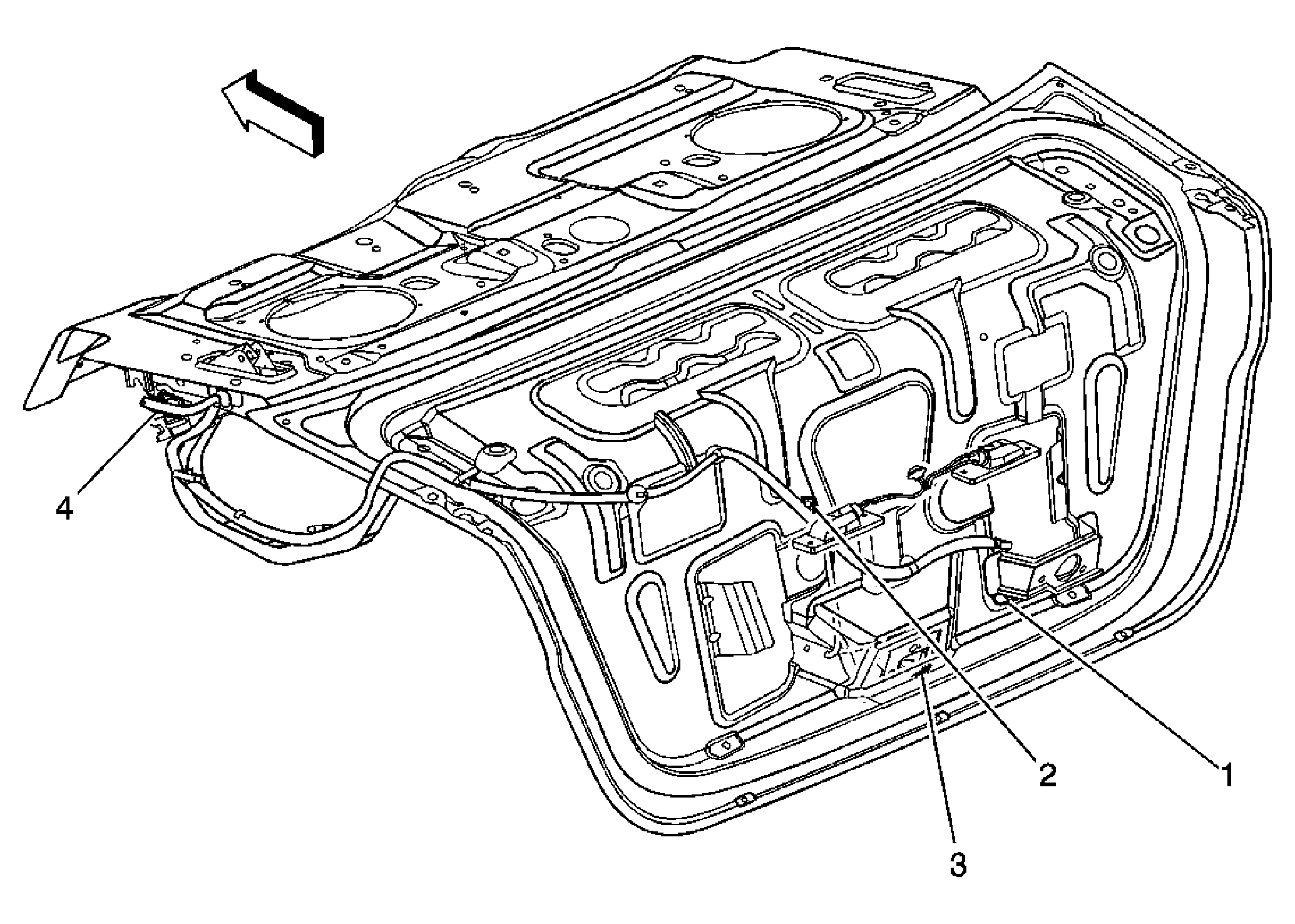

| Callout | Component Name |
|---|---|
| 1 | Tamper Switch |
| 2 | License Plate Lamp |
| 3 | Trunk Lid AJAR Switch |
| 4 | Connector C402 |

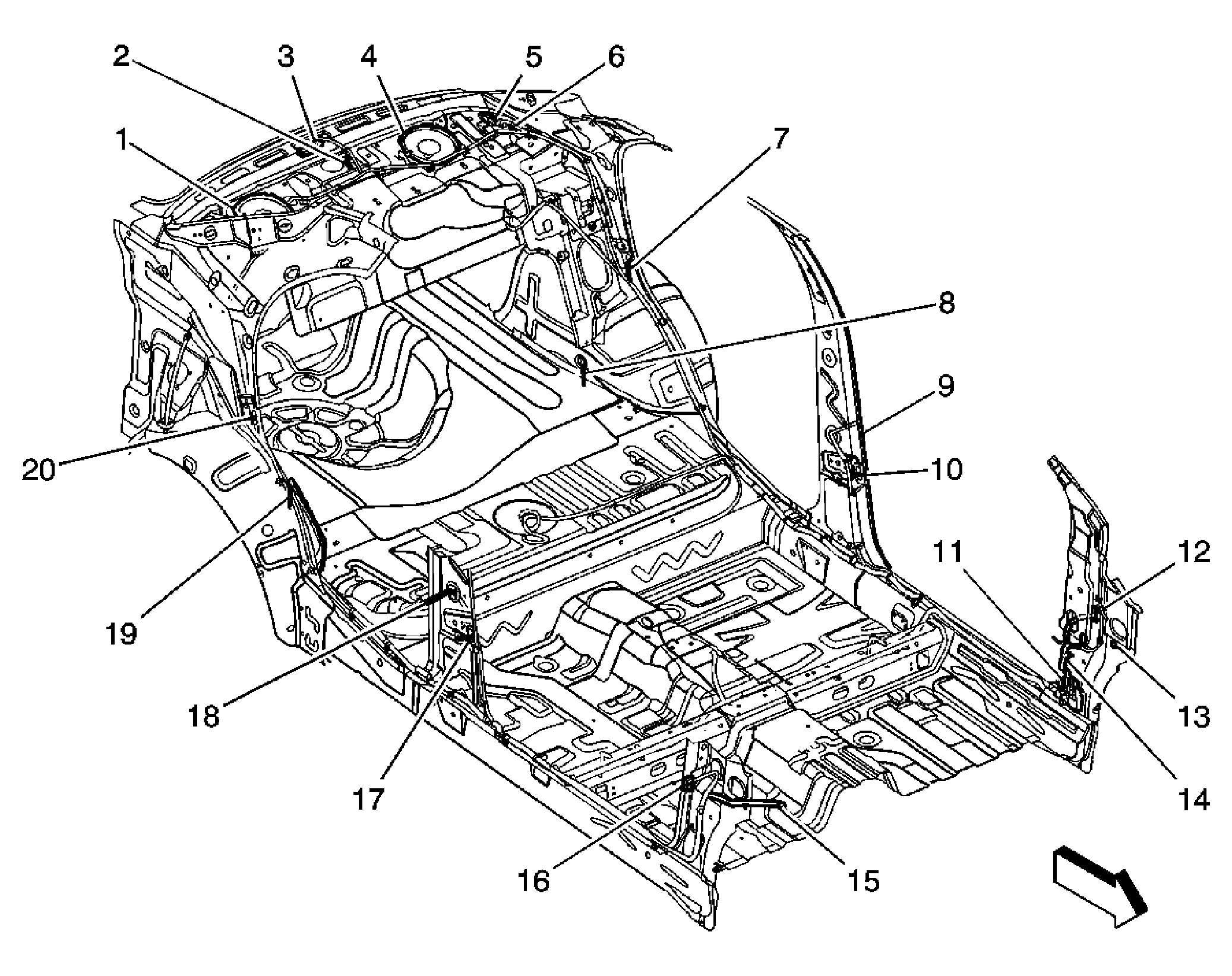

| Callout | Component Name |
|---|---|
| 1 | Rear Speaker - RH |
| 2 | CHMSL |
| 3 | Trunk Room Lamp |
| 4 | Rear Speaker - LH |
| 5 | Connector C401 |
| 6 | Body Harness |
| 7 | Rear Door AJAR Switch |
| 8 | Rear Wheel Speed Sensor - LH |
| 9 | Connector C371 |
| 10 | Front Door AJAR Switch |
| 11 | Connectors C211, C210, C212, C213 |
| 12 | Hose |
| 13 | Connector C351 |
| 14 | Roof Antenna Cable |
| 15 | Central Door Locking Unit |
| 16 | Connector C361 |
| 17 | Front Door AJAR Switch |
| 18 | Connector C381 |
| 19 | Rear Wheel Speed Sensor - RH |
| 20 | Rear Door AJAR Switch |

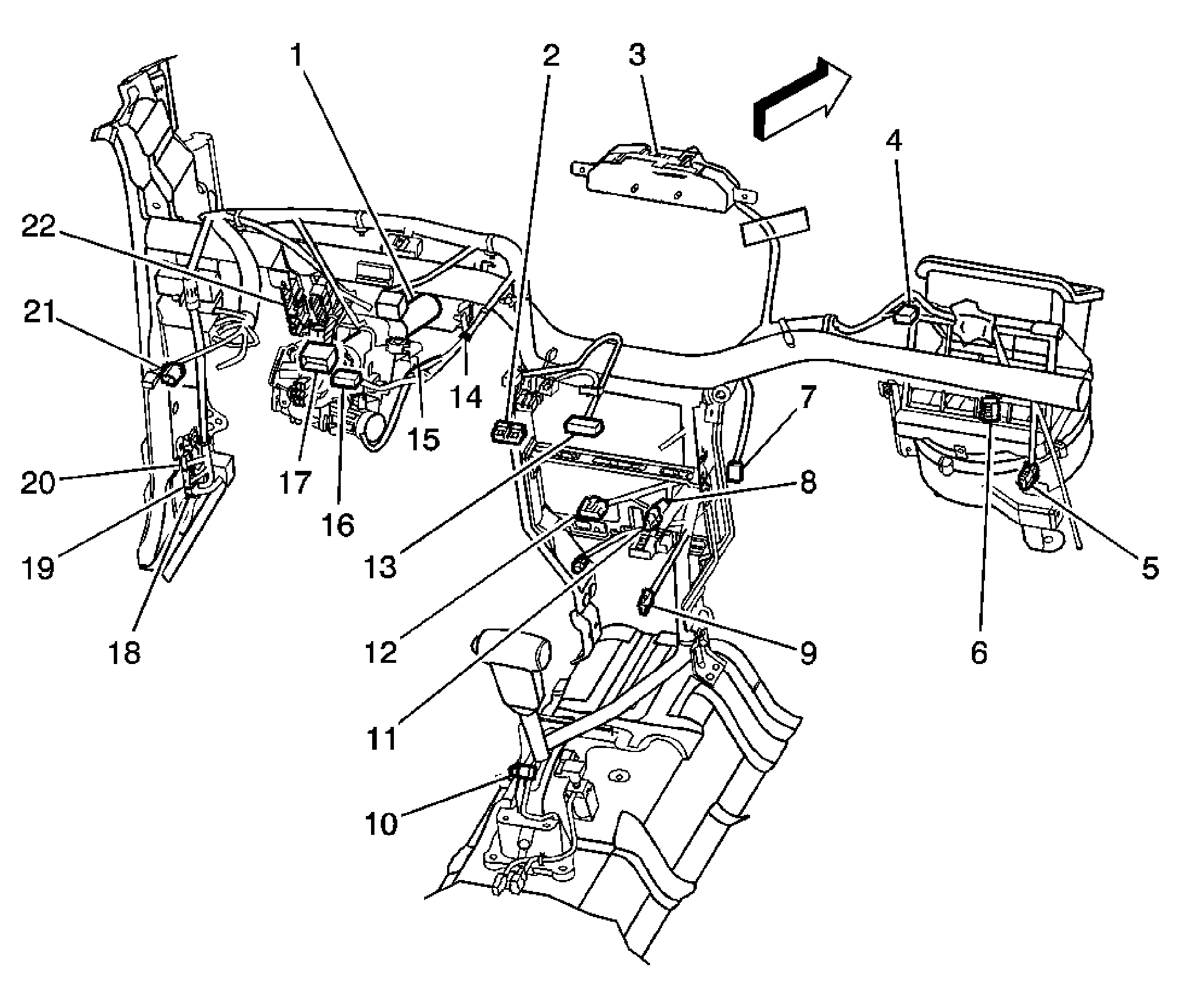

| Callout | Component Name |
|---|---|
| 1 | Cluster |
| 2 | DLC |
| 3 | Clock |
| 4 | Intake Actuator |
| 5 | Blower Motor |
| 6 | Resistor Blower |
| 7 | DRL |
| 8 | Connector C214 |
| 9 | Cigar Lighter |
| 10 | BTSI Solenoid |
| 11 | Illumination |
| 12 | Blower Switch |
| 13 | Audio |
| 14 | Key Remind Switch |
| 15 | Contact Coil |
| 16 | Wiper Switch |
| 17 | Inflatable Restraint Steering Wheel Module Coil |
| 18 | Connector C210 |
| 19 | Connector C212 |
| 20 | Connector C213 |
| 21 | Head Lamp Leveling Switch |

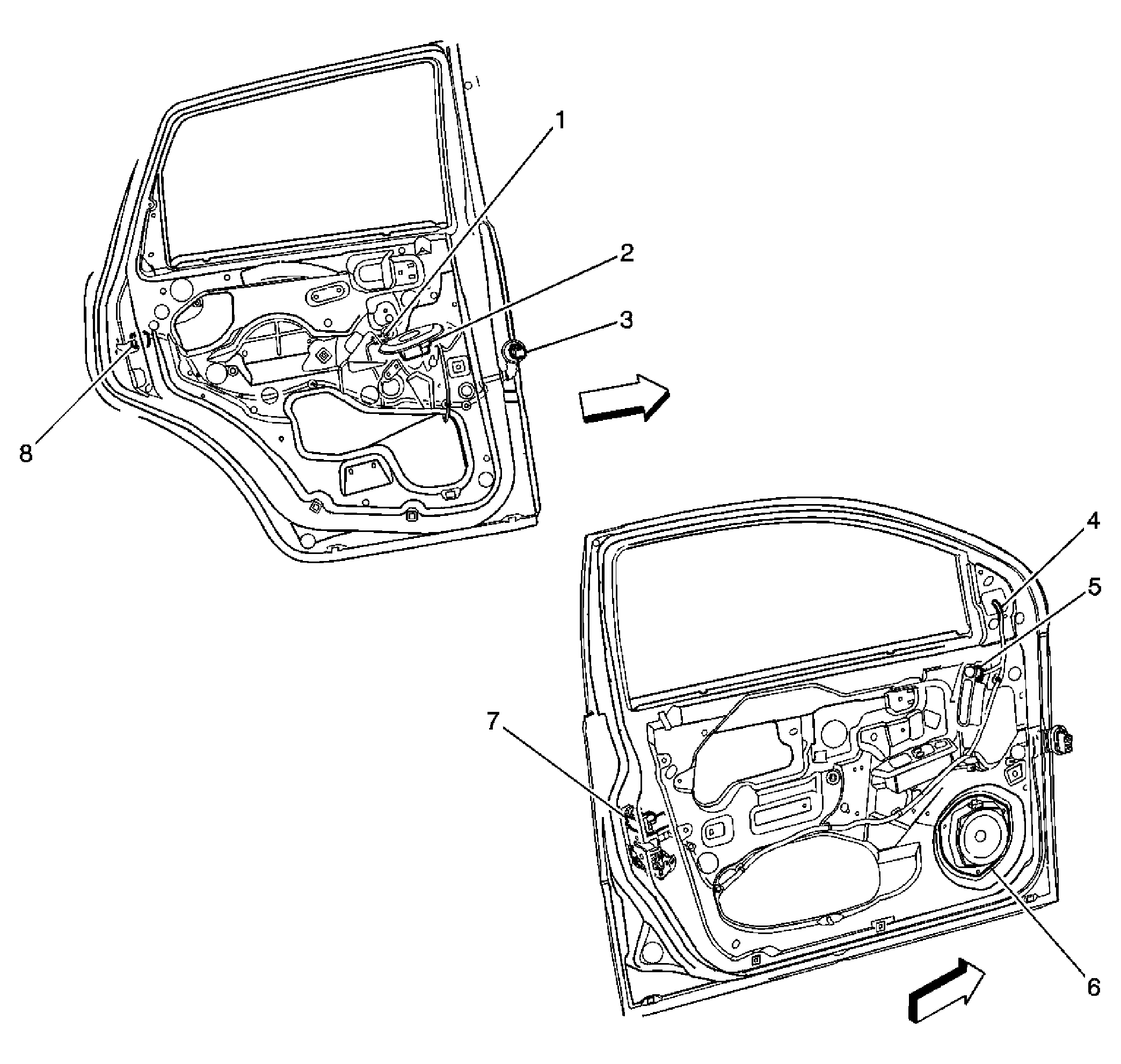

| Callout | Component Name |
|---|---|
| 1 | Power Window Motor |
| 2 | Power Window Switch |
| 3 | Connector C371, C381 Similar |
| 4 | Mirror Connector |
| 5 | Mirror Switch |
| 6 | Connector C351, C361 Similar |
| 7 | Speaker |
| 8 | Door Actuator - Front |
| 9 | Door Actuator - Rear |
| Callout | Component Name |
|---|---|
| 1 | Ignition Lock Module (North America) |
| 1 | Rear Fog Relay (LHD - w/Rear Fog) |
| 2 | Defog Relay (RHD) |
| 2 | Turn Signal/Hazard Flasher (LHD) |
| 3 | Wiper Relay |
| 4 | Park/Neutral Position (PNP) Relay (RHD) |
| 4 | Daytime Relay Lamp (DRL) Relay (Scandanavian) |
| 5 | Blink Relay |
| 6 | Blower Relay |
| 7 | Turn Signal/Hazard Flasher (RHD) |
| 7 | Park/Neutral Position (PNP) Relay (LHD) |
| 8 | Defog Relay (LHD) |
| 8 | Rear Fog Relay (RHD) |
| 9 | Fuse Block - I/P |
