SP202 (RHD)

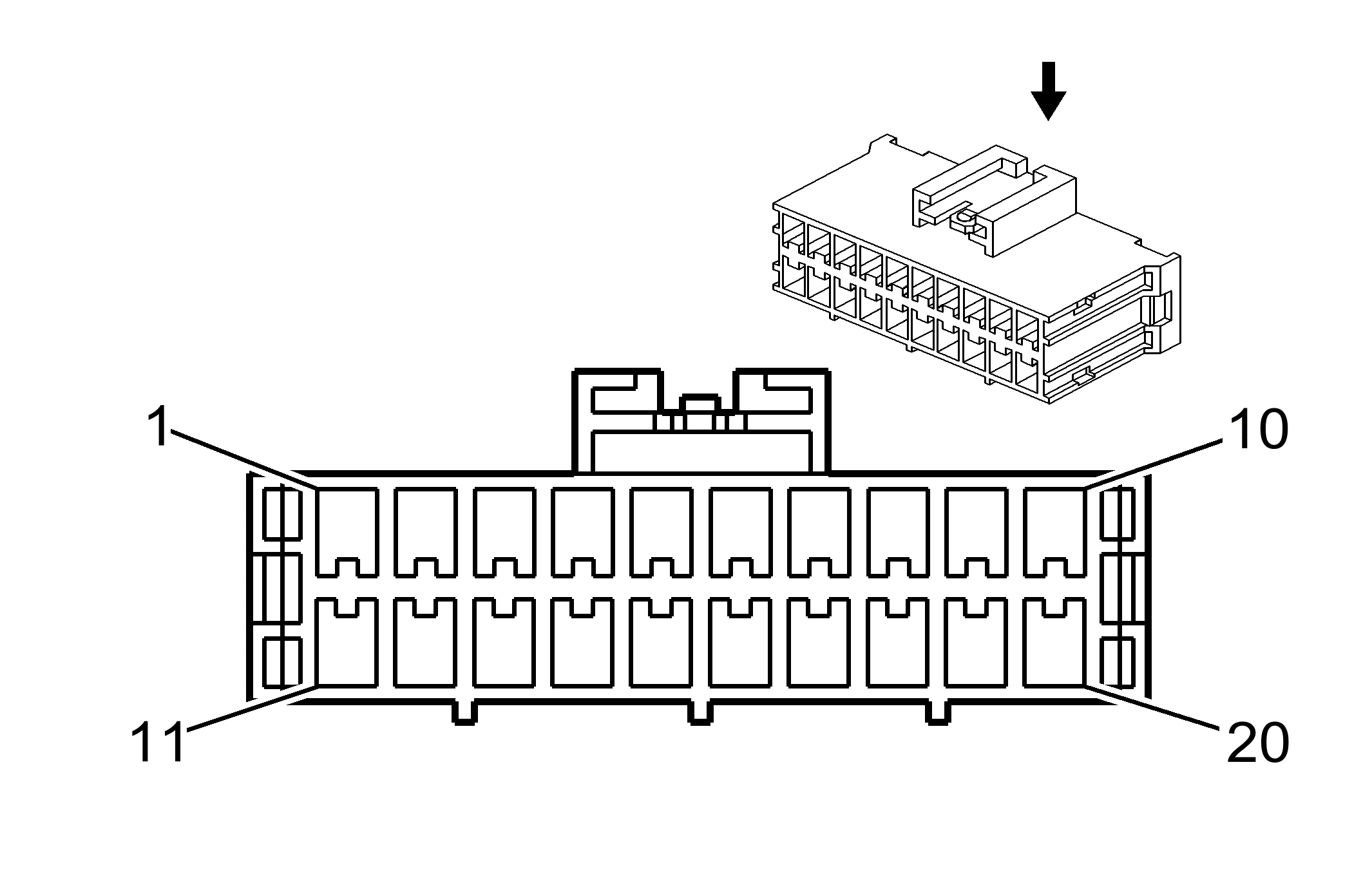

SP202 (RHD) Connector End Views
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK | 450 | Ground |
| 2 | BK | 450 | Ground |
| 3 | BK | 450 | Ground (w/Rear Fog Lamps) |
| BK | 450 | Ground (w/Rear Fog Lamps) | |
| 4 | BK | 450 | Ground (w/Headlamp Leveling) |
| 5 | BK | 450 | Ground (w/Rear Fog Lamps w/o Dimming) |
| 6 | BK | 450 | Ground (w/Headlamp Leveling) |
| 7 | BK | 450 | Ground |
| BK | 450 | Ground (w/o Dimming) | |
| BK | 450 | Ground (w/Dimming) | |
| 8 | BK | 450 | Ground (w/Multifunction Alarm) |
| 9 | BK | 450 | Ground (w/Auto Transmission) |
| BK | 250 | Ground (w/Auto Transmission) | |
| BK | 450 | Ground (w/Auto Transmission w/o Dimming) | |
| 10 | BK | 450 | Ground (w/o Dimming w/A/C) |
| BK | 450 | Ground (w/o A/C) | |
| 11 | BK | 450 | Ground (w/A/C) |
| 12 | BK | 450 | Ground (w/ABS) |
| 13 | BK | 450 | Ground |
| BK | 450 | Ground (w/ABS) | |
| 14 | BK | 450 | Ground |
| BK | 450 | Ground | |
| 15 | BK | 450 | Ground |
| 16 | BK | 450 | Ground |
| BK | 450 | Ground | |
| 17 | BK/WH | 450 | Ground |
| BK/WH | 51 | Ground | |
| 18 | - | - | Not Used |
| 19 | BK | 450 | Ground (w/Immobilizer) |
| 20 | BK | 450 | Ground (w/Auto Transmission) |
| BK | 450 | Ground | |
