Data Link Connector (DLC) Schematics

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

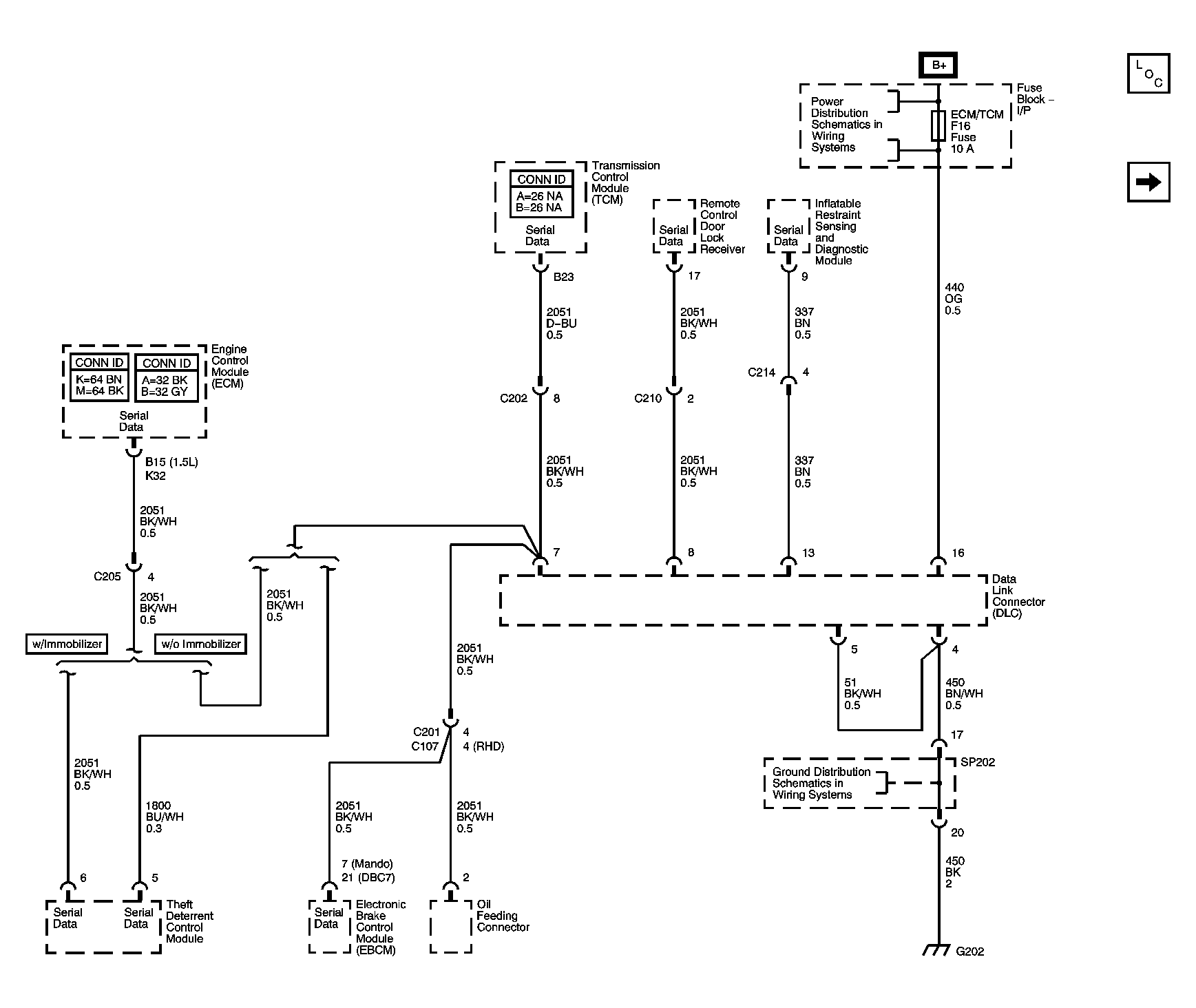

Fig 1: Data Link Connector (DLC) Schematics
GM1282554Courtesy of GENERAL MOTORS CORP.
