Power Window Schematics

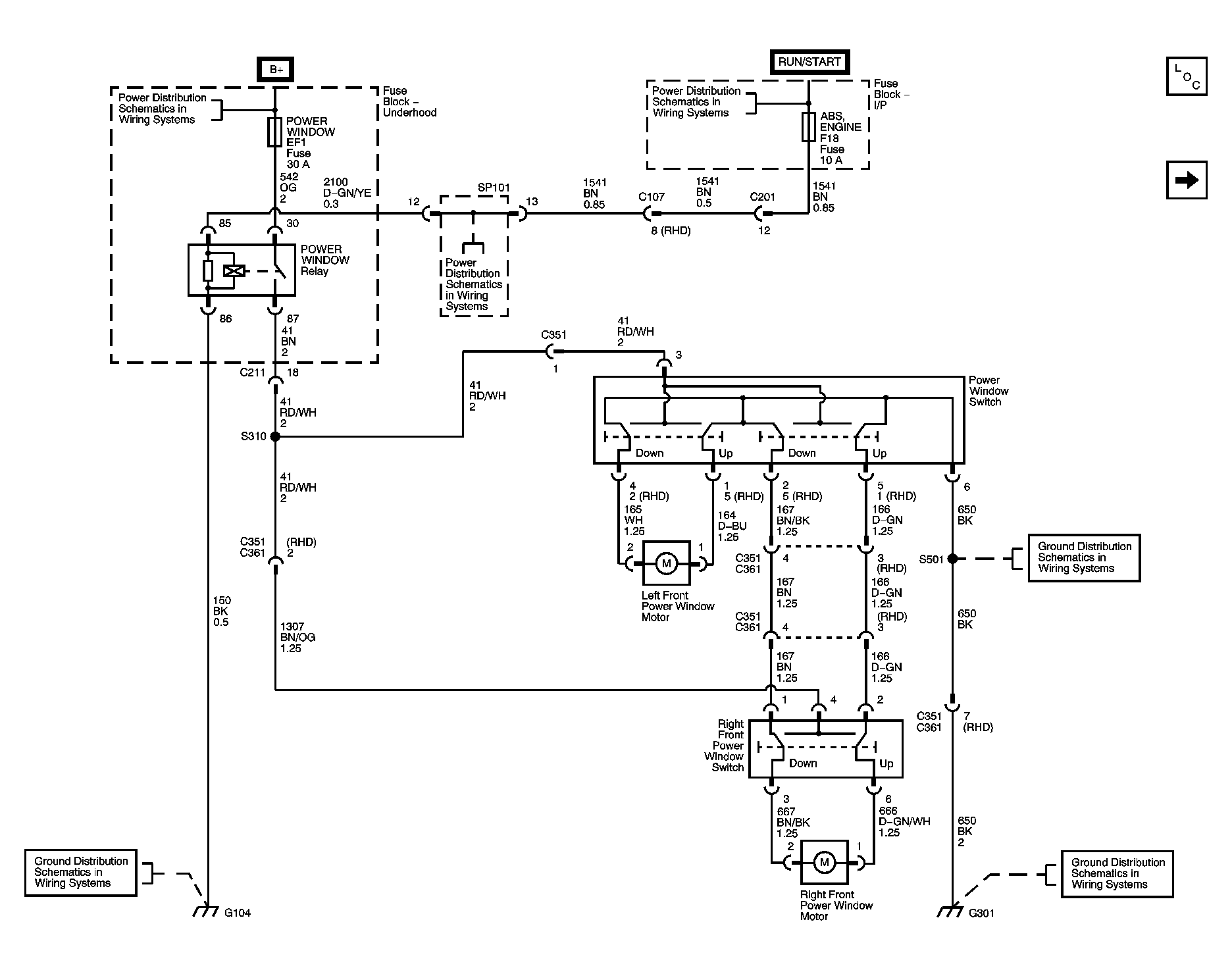

Fig 1: Front Only Schematics
Courtesy of GENERAL MOTORS CORP.

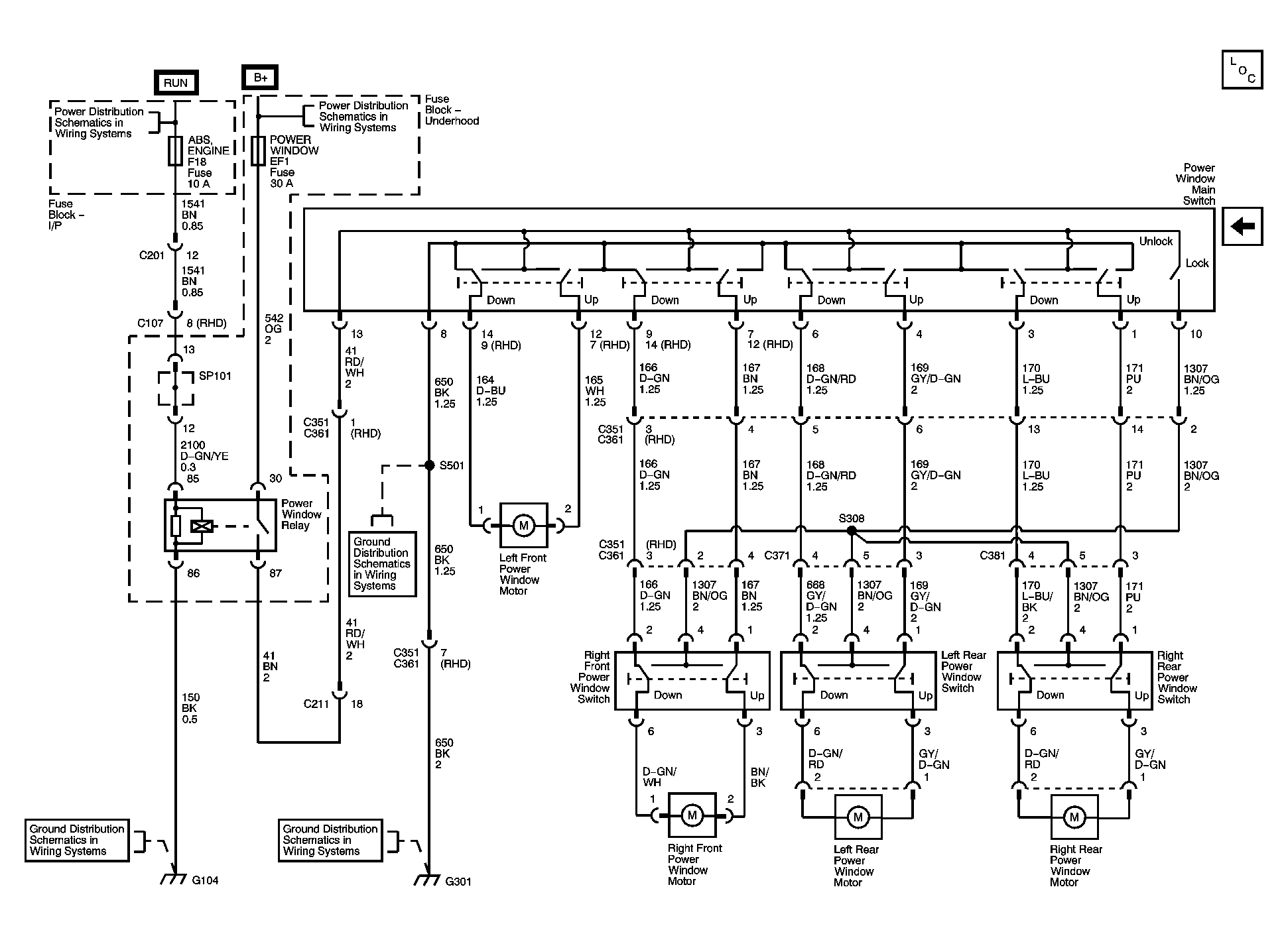

Fig 2: Front and Rear Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
