Removal Procedure

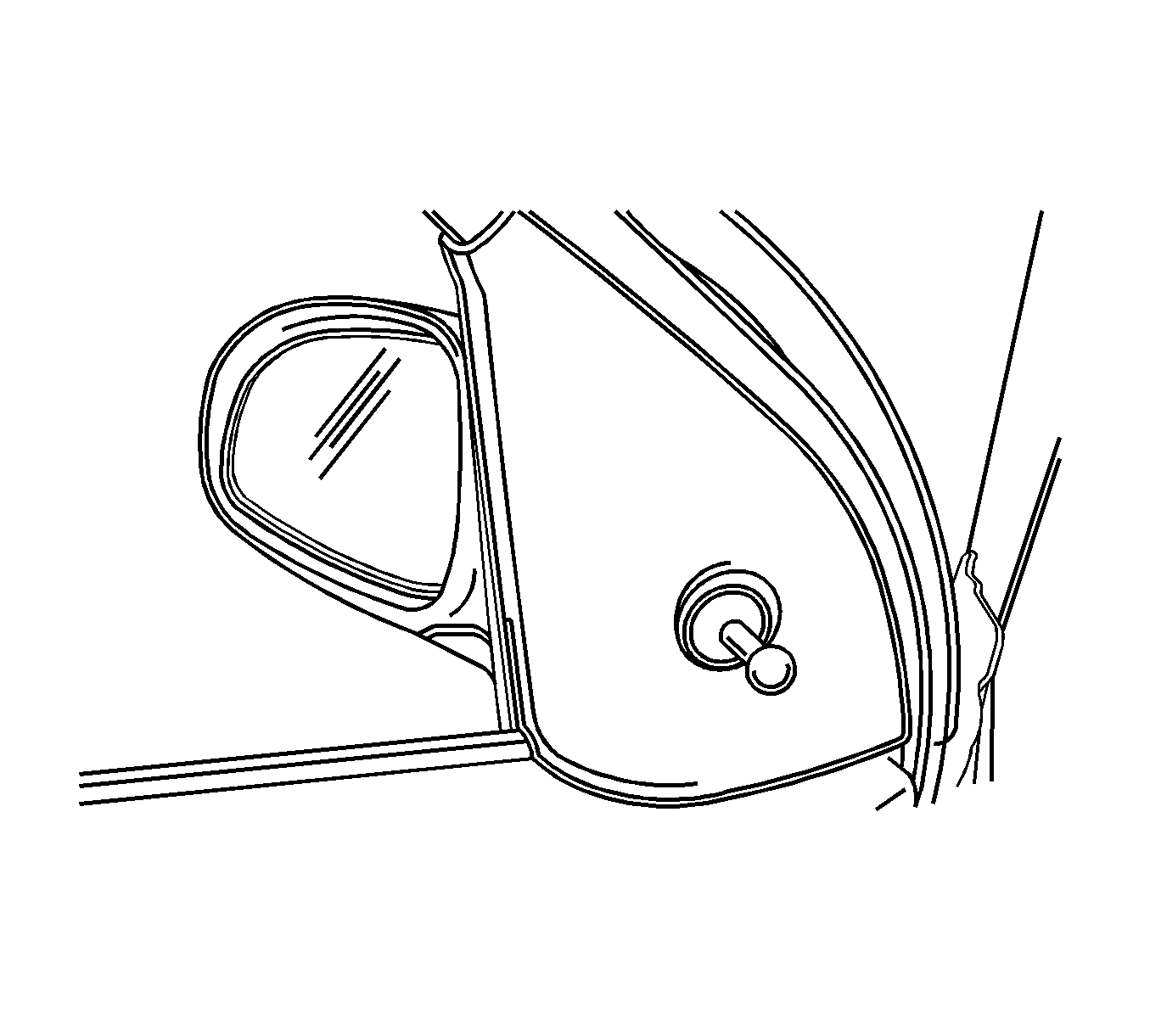

    Fig 1: View of Manual Remote Control Mirror and Escutcheon
    GM1248493Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door escutcheon. Manual remote control mirror shown.
    2. Fig 2: View of Electric Control Rearview Mirror Electrical Connector and Outside Mirror Assembly
    GM1248495Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electric control rearview mirror electrical connector, if equipped.
  3. Remove the screws and the outside rearview mirror assembly from the door. Manual remote control mirror shown.
