Wiper/Washer System Connectors

Motor Wiper - Rear

GM1467038Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610394
  • 3-Way F Sealed Series
Pin Wire Color Circuit No. Function
1 RD/D-BU 441 Ignition 3 Voltage
2 BK 850 Ground
3 GY/RD 393 Rear Window Wiper Motor Control
Windshield Washer Fluid Pump - Front

GM1467079Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 640605
  • 2-Way F 090 WP Series (WH)
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 D-GN/WH 94 Windshield Washer Switch Signal
Windshield Washer Fluid Pump - Rear

GM1467079Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 640605
  • 2-Way F 090 WP Series (WH)
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 BK 392 Rear Window Washer Pump Control
Windshield Wiper Motor

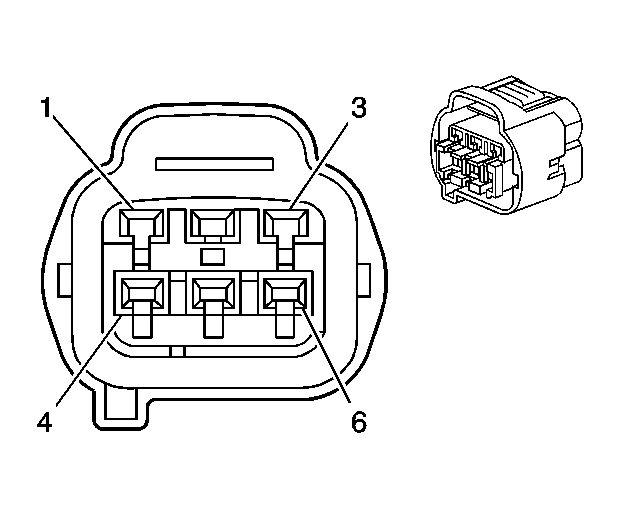

GM1468439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 641107-5
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 D-GN 96 Windshield Wiper Switch Pulse Delay Signal
3 RD 441 Ignition 3 Voltage
4 BK 250 Ground
5 D-BU 92 Windshield Wiper Motor Low Speed
6 WH 95 Windshield Wiper Motor High Speed
Windshield Wiper Switch

GM1468431Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610154
  • 9-Way F 118 (PA) Series (WH)
Pin Wire Color Circuit No. Function
1 GY 393 Rear Window Wiper Motor Control
2 L-GN/BK 392 Rear Window Washer Pump Control
3 RD 441 Ignition 3 Voltage
4 D-GN/WH 94 Windshield Washer Switch Signal
D-GN/WH 94 Windshield Washer Switch Signal
5 D-BU 92 Windshield Wiper Motor Low Speed
6 BN 97 Windshield Wiper Switch Mist/Off/Low Signal
7 PU 91 Windshield Wiper Switch Signal 2
8 RD 441 Ignition 3 Voltage
9 WH 95 Windshield Wiper Motor High Speed
