Installation Procedure

    Fig 1: Installing Electrical Connections & Turn Signal Switch
    GM1248382Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connections to the turn signal switch.
  2. Install the turn signal switch by snapping it into the switch housing.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.

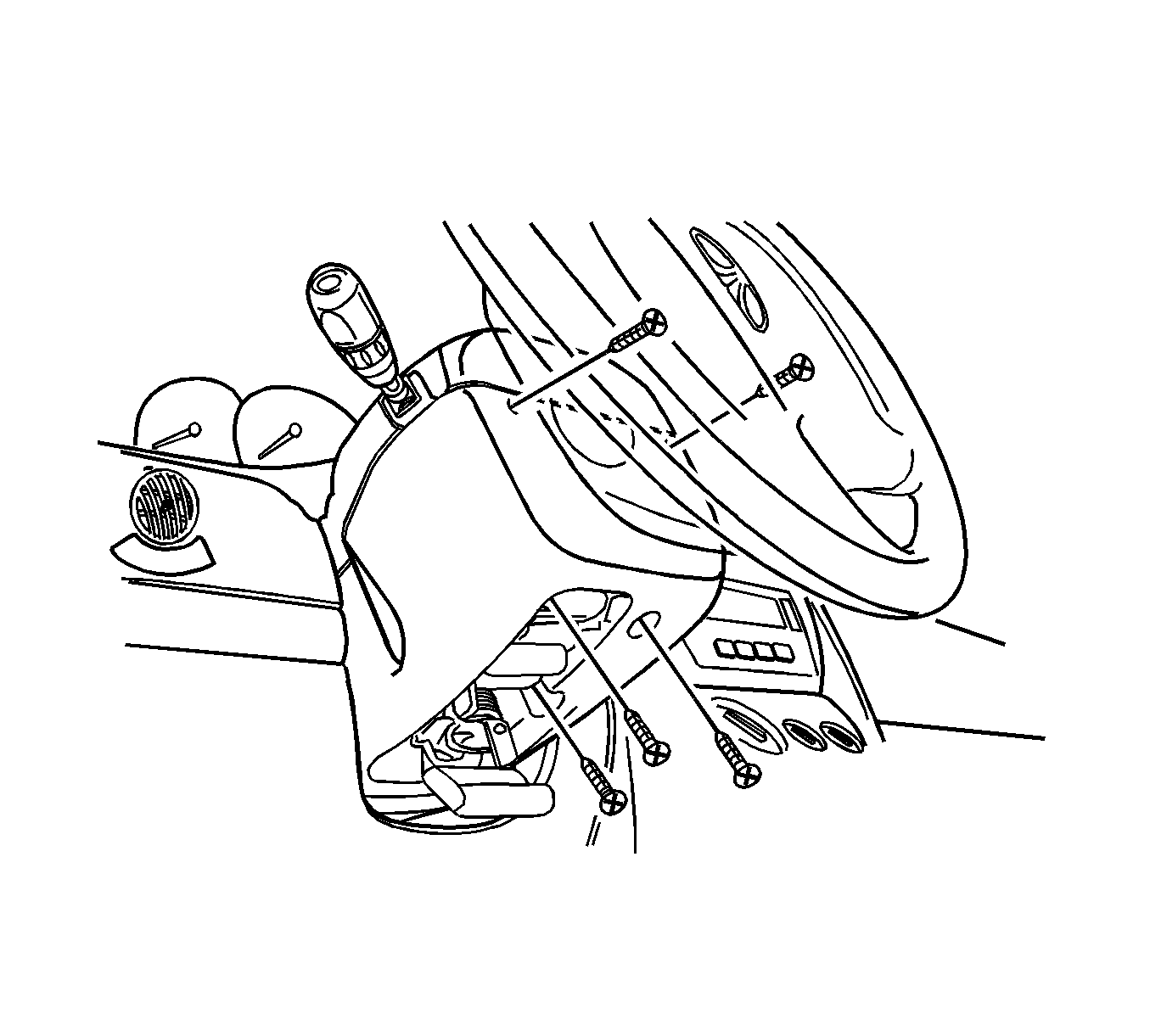

    Fig 2: Lower Steering Column Cover Panel & Screws
    GM1248378Courtesy of GENERAL MOTORS CORP.
  3. Install the lower steering column cover panel using the lower steering column cover panel screws.

    Tighten:  Tighten the lower steering column cover panel screws to 3 N.m (27 lb in).

  4. Install the upper steering column cover panel using the upper steering column cover panel screws.

    Tighten:  Tighten the upper steering column cover panel screws to 3 N.m (27 lb in).

  5. Connect the negative battery cable.
