Visual Inspection

Visually check the following parts and systems.

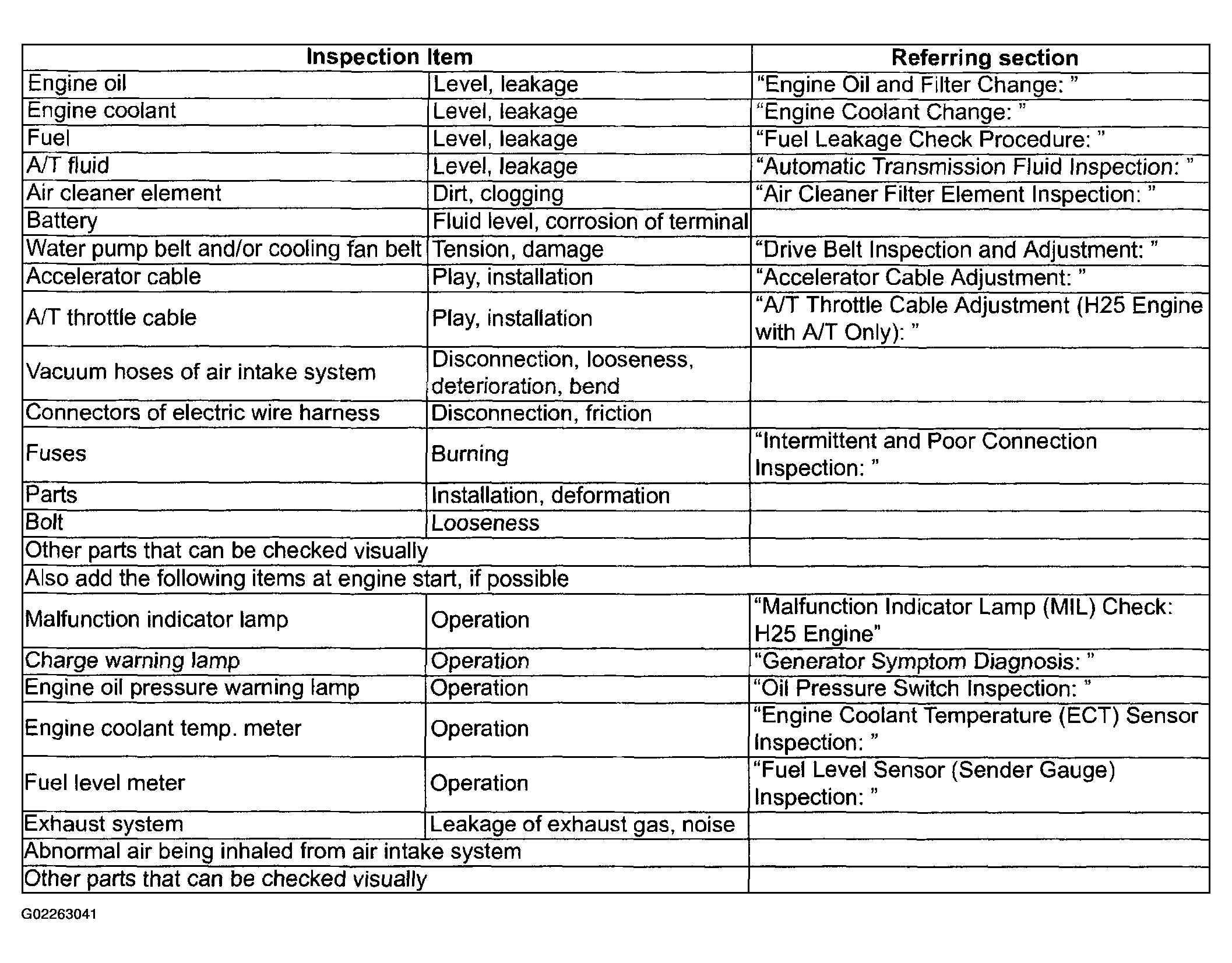

Fig 1: Visual Inspection Chart

G02263041

Courtesy of SUZUKI OF AMERICA CORP.
