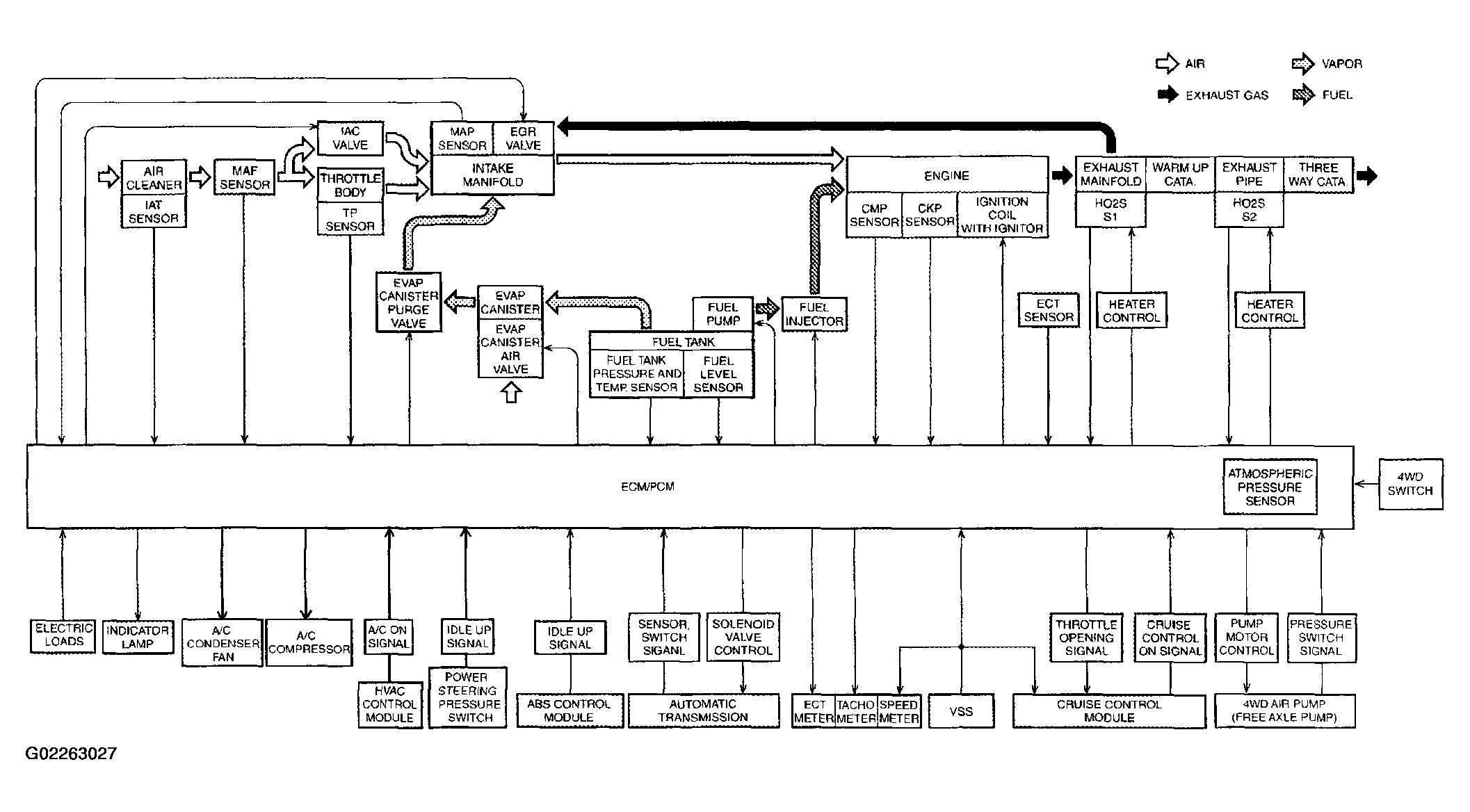

Home >> Suzuki >> 2004 >> Grand Vitara EX, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information & Diagnosis >> H25 Engine >> General Description >> Electronic Control System Description >> Electronic Control System Flow Chart
