Specifications
>>
Tightening Torque Specifications
Tightening Torque Specifications

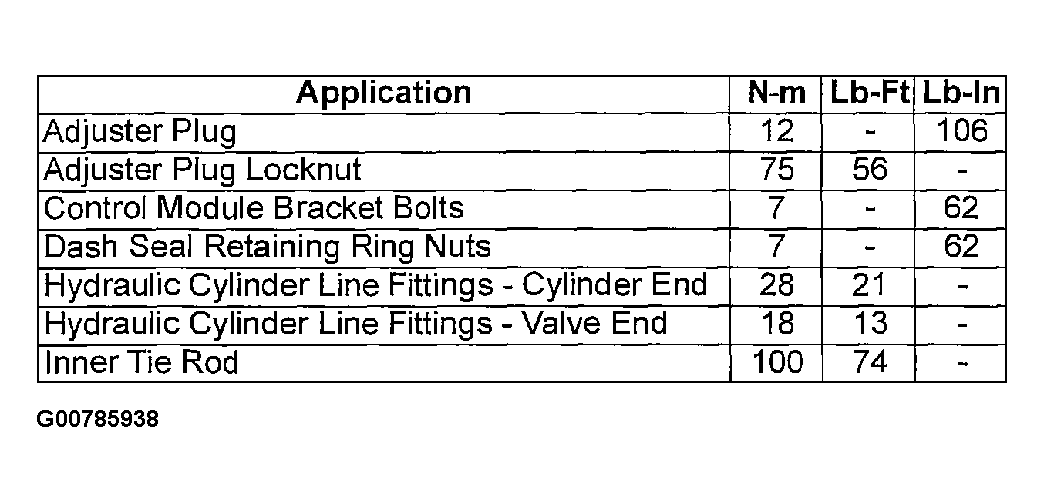

Fig 1: Tightening Torque Specifications (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

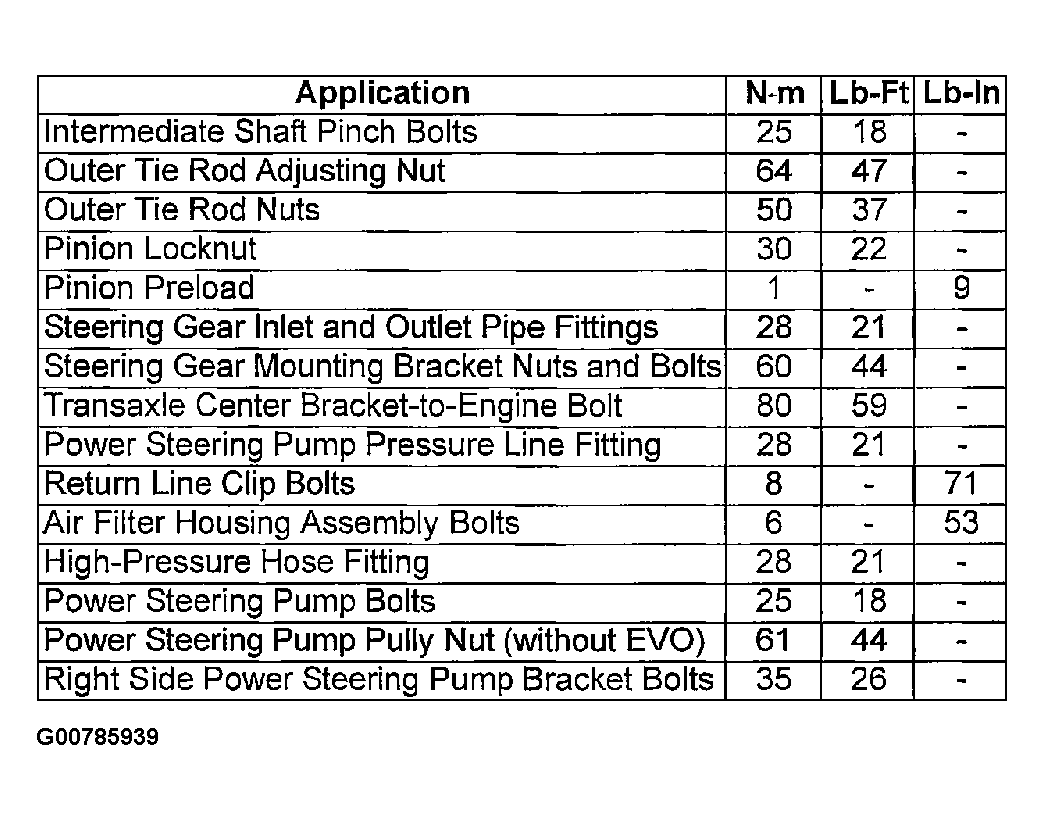

Fig 2: Tightening Torque Specifications (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
